EVAP Control System (KA, KC models)

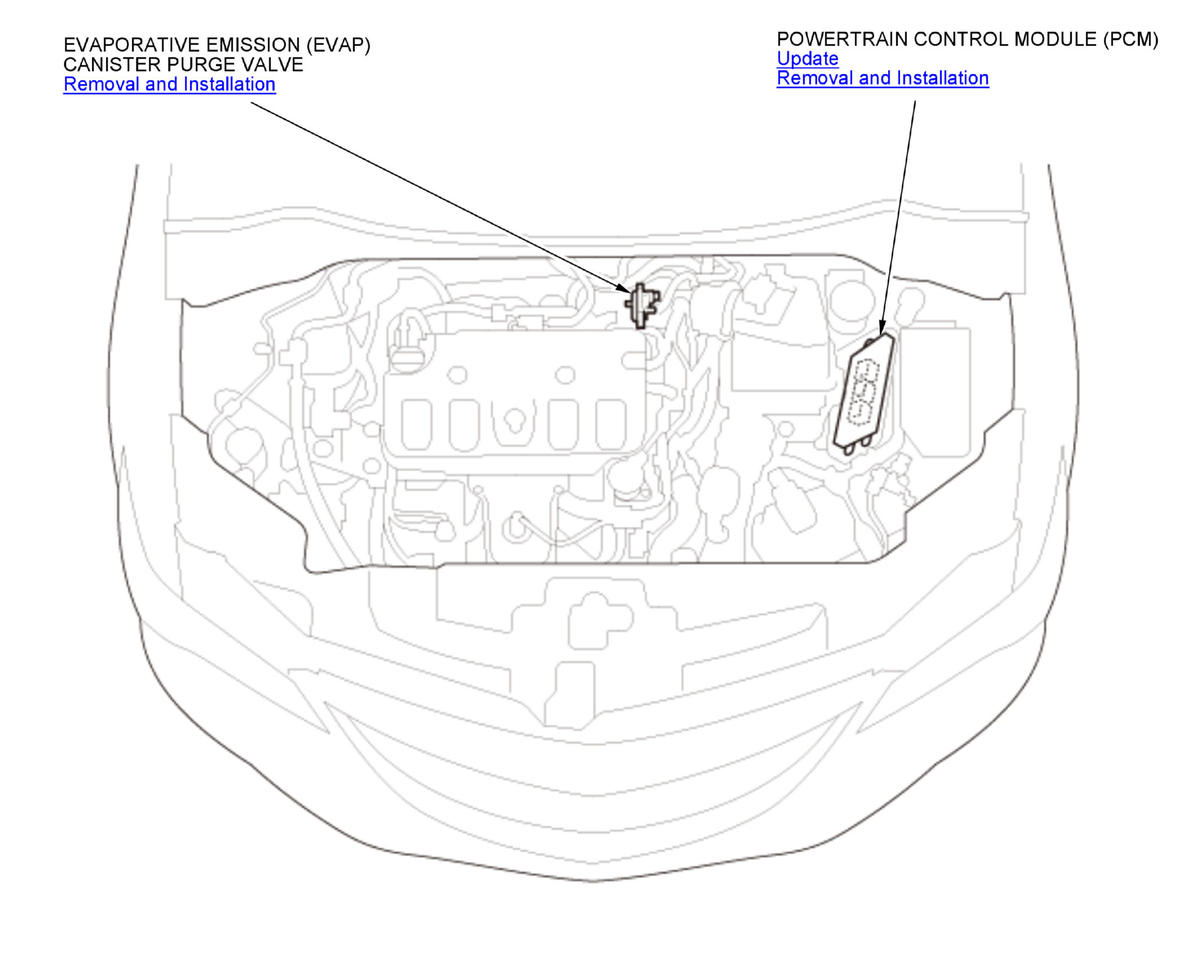

GHH468882

Courtesy of HONDA, U.S.A., INC.

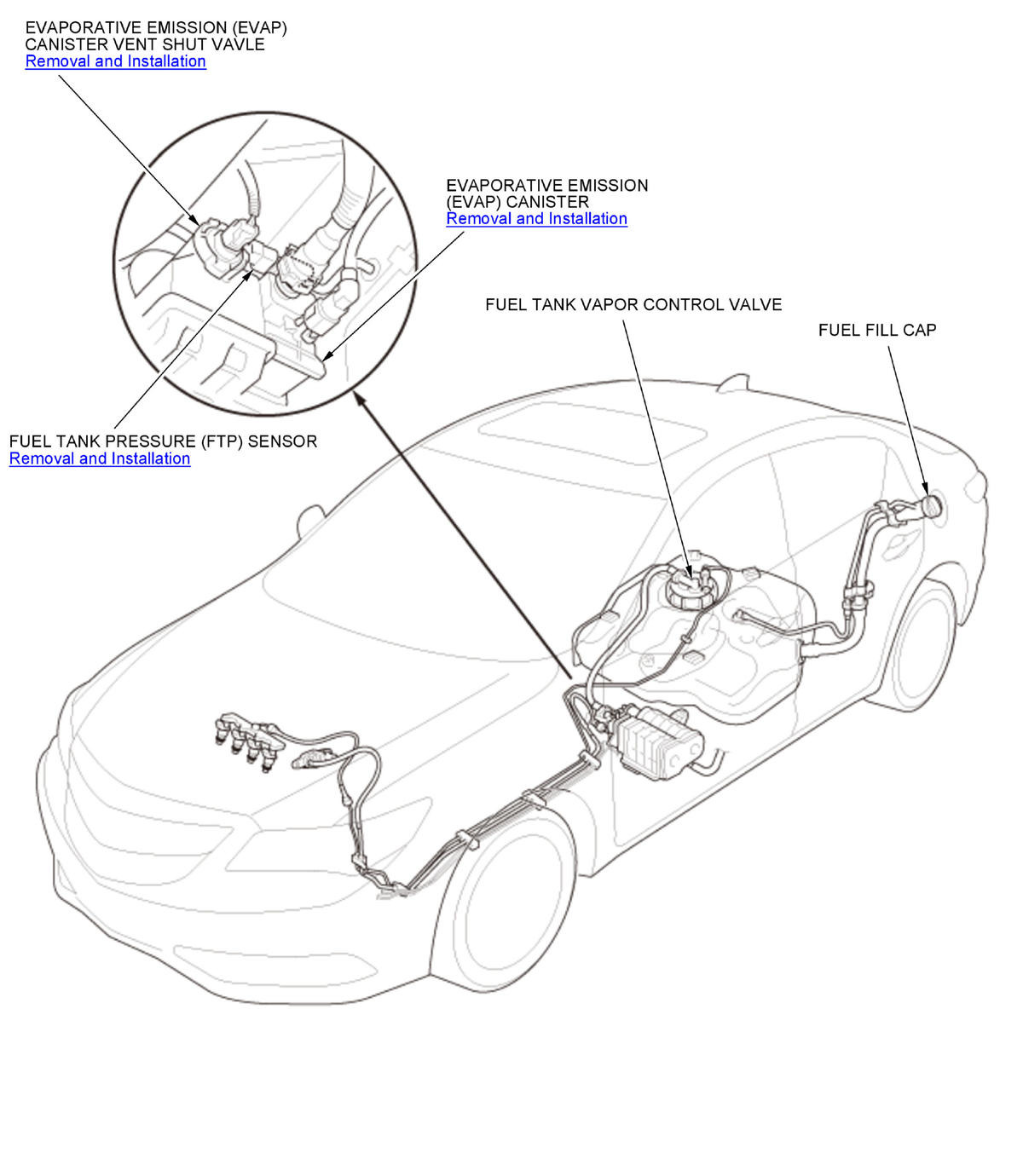

USA and Canada models

GHH468883

Courtesy of HONDA, U.S.A., INC.

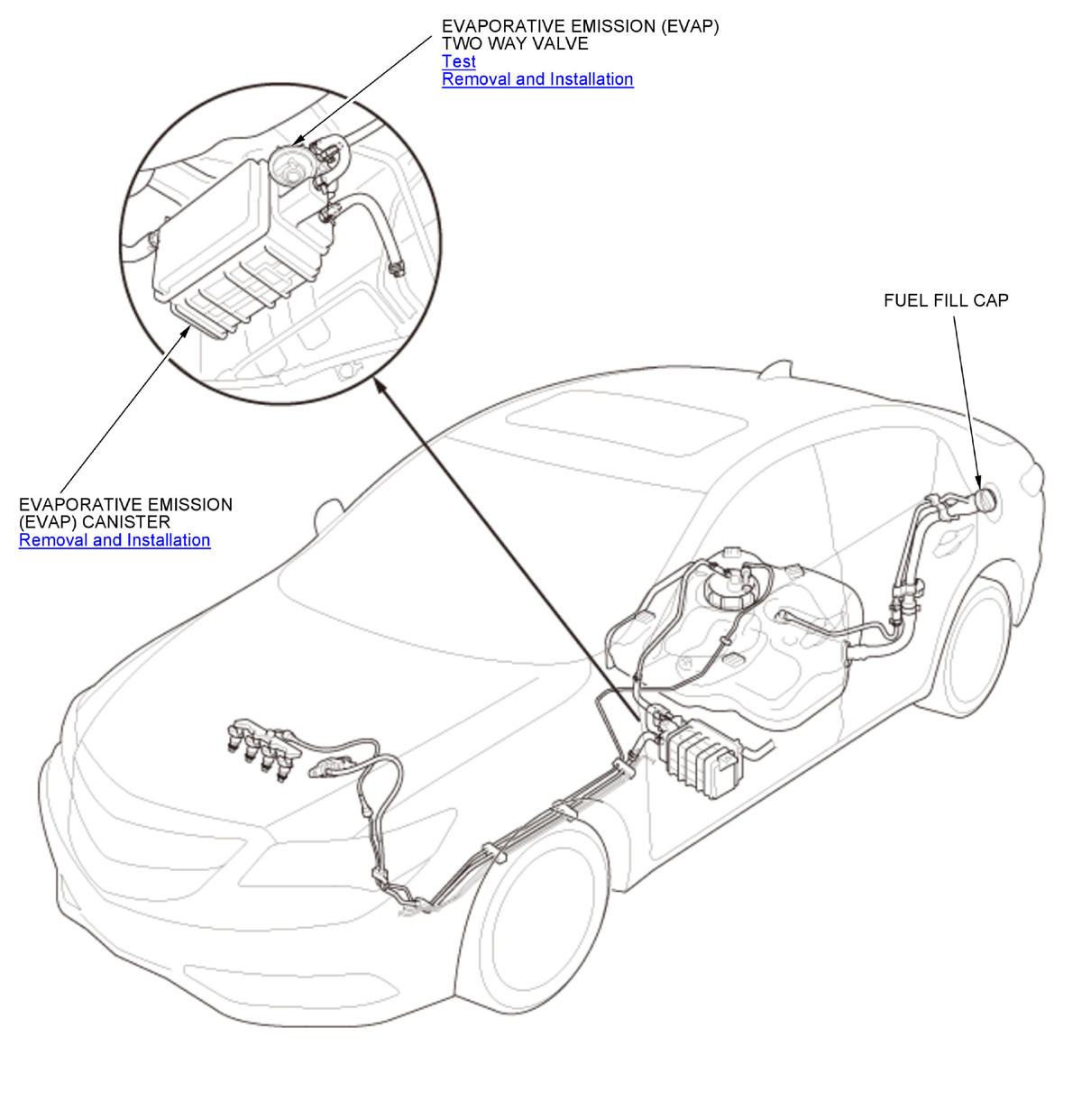

Mexico models

GHH468884

Courtesy of HONDA, U.S.A., INC.
