EVAP Control System (K24Z7)

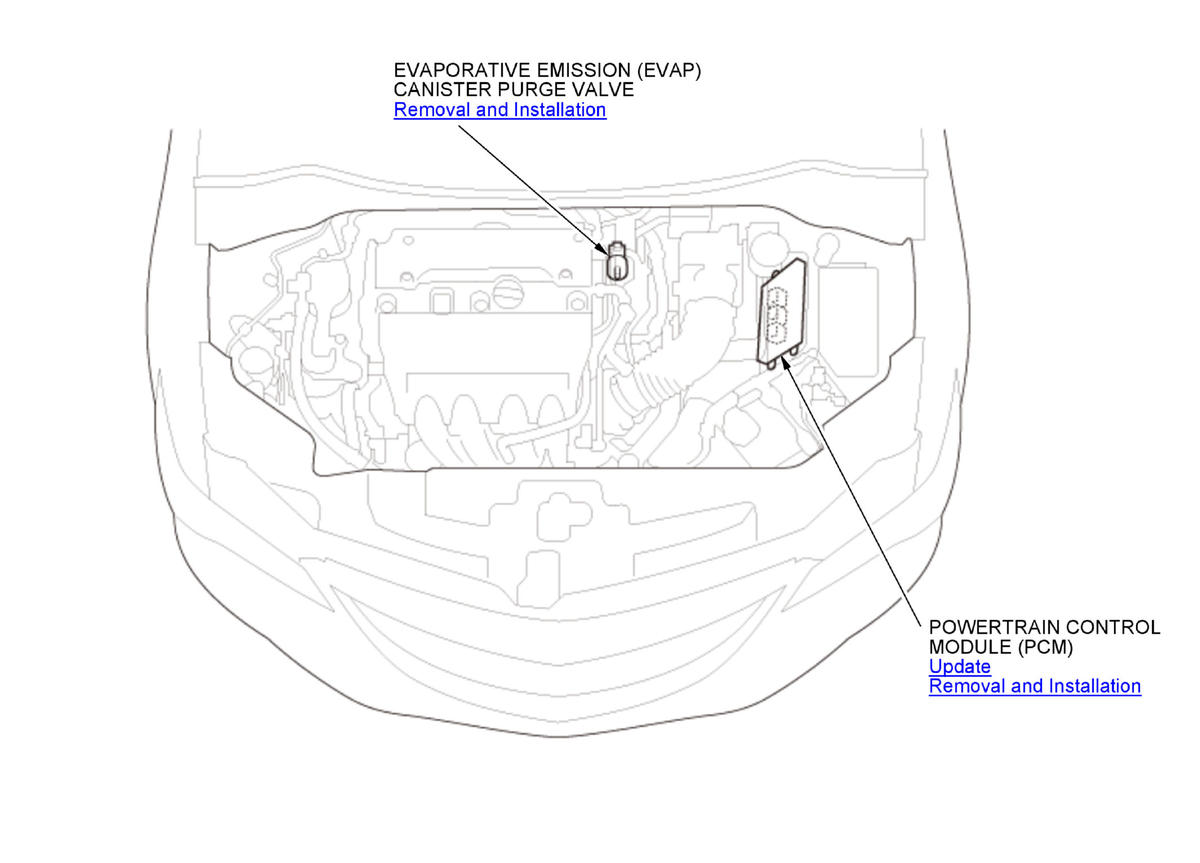

GHH468879

Courtesy of HONDA, U.S.A., INC.

USA and Canada models

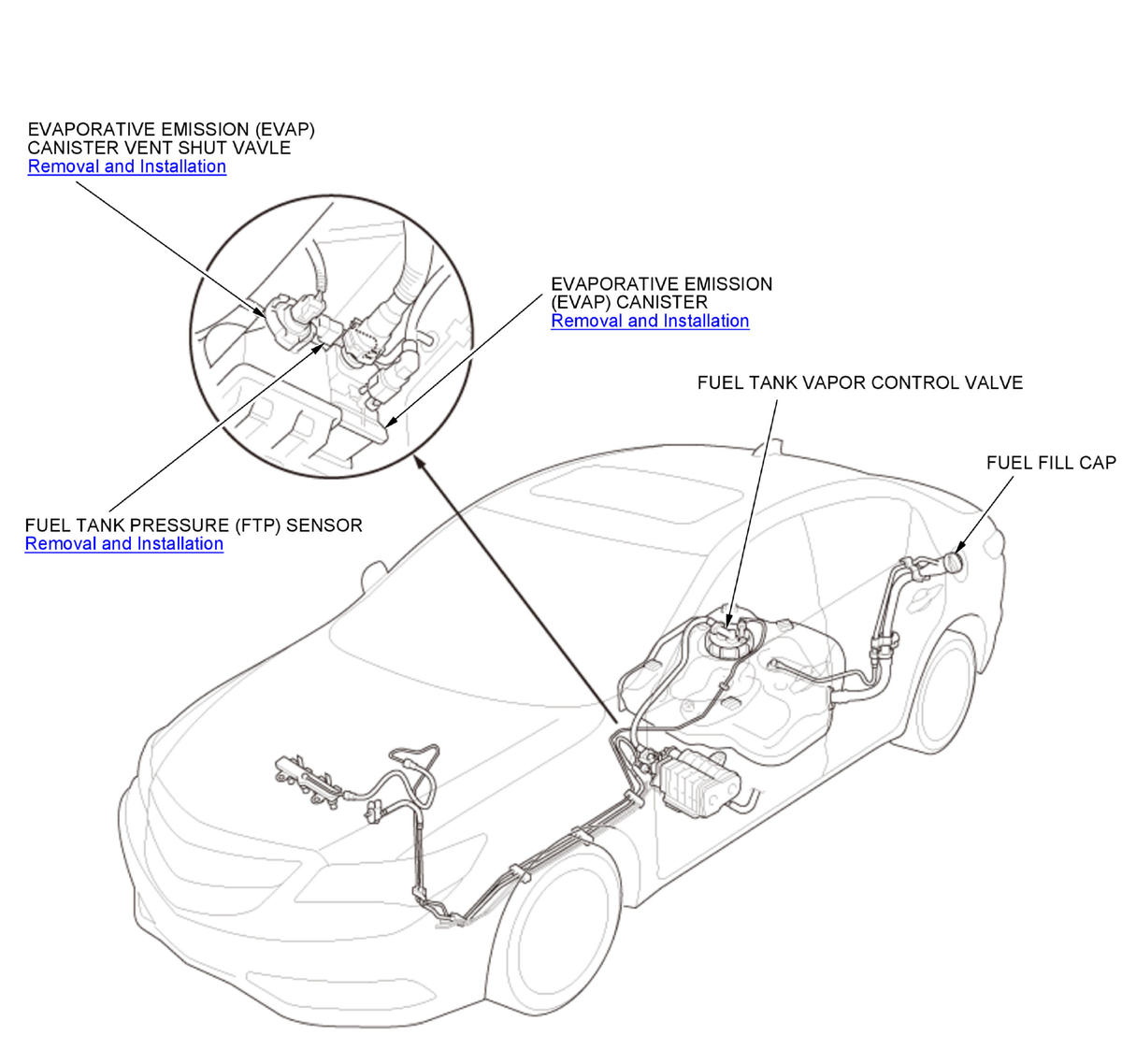

GHH468880

Courtesy of HONDA, U.S.A., INC.

Mexico models

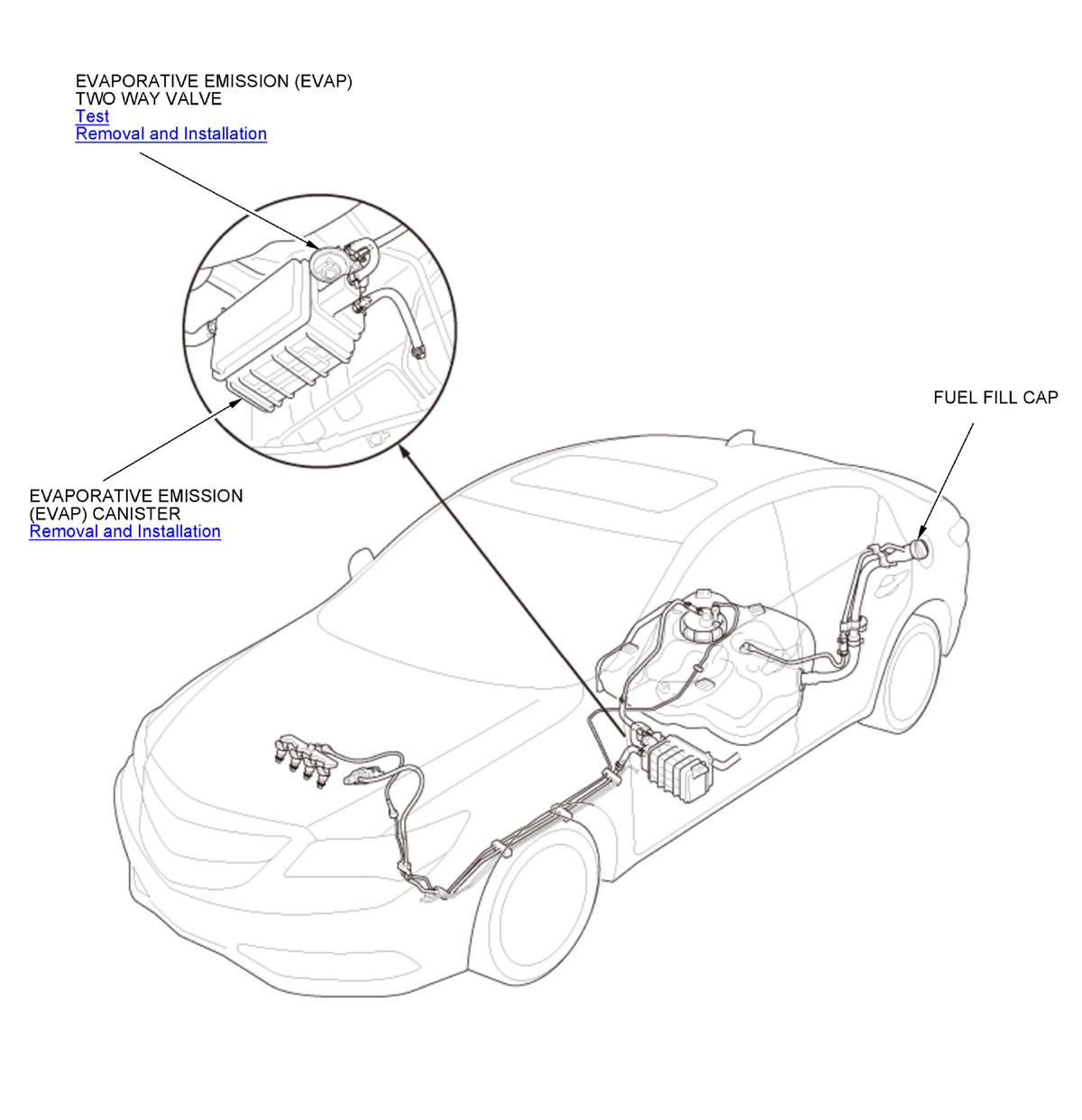

GHH468881

Courtesy of HONDA, U.S.A., INC.
