Engine Oil Pressure Test (V6): Test

If the low oil pressure indicator stays on with the engine running, check the engine oil level - Refer to: Engine Oil Level Check (V6) . If the oil level is normal:

1. Rocker Arm Oil Pressure Sensor - Remove
2. Engine Oil Pressure - Test

   1. Install the oil pressure hose, the A/T low pressure gauge w/panel, the A/T pressure test hose, and the A/T pressure adapter as shown, then install the rocker arm oil pressure sensor to the pressure gauge adapter.

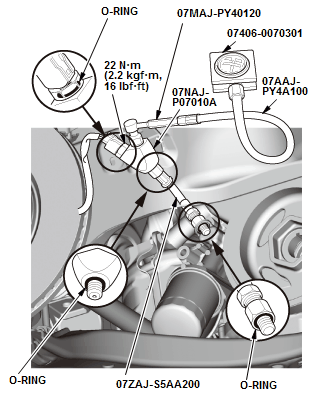

   Fig 1: Engine Oil Pressure Tester With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.

   2. Start the engine. Shut it off immediately if the gauge registers no oil pressure. Repair the problem before continuing

   3. Allow the engine to reach operating temperature (fan comes on at least twice). The pressure should be:

   Engine Oil Temperature:		176 °F (80 °C)
   Engine Oil Pressure:
   At Idle:	70 kPa (0.71 kgf/cm 2, 10.1 psi) min.
   At 3, 000 rpm:	490 kPa (5.00 kgf/cm 2, 71.1 psi) min.

   4. If oil pressure is not within specifications, inspect these items:

   • Oil filter blocked or plugged.
   • Oil strainer blocked or plugged.
   • Inspect the oil pressure relief valve - Refer to: Engine Oil Pump Overhaul (V6) .
3. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
