Air Cleaner Element: Removal

  1. Air Cleaner Element - Remove

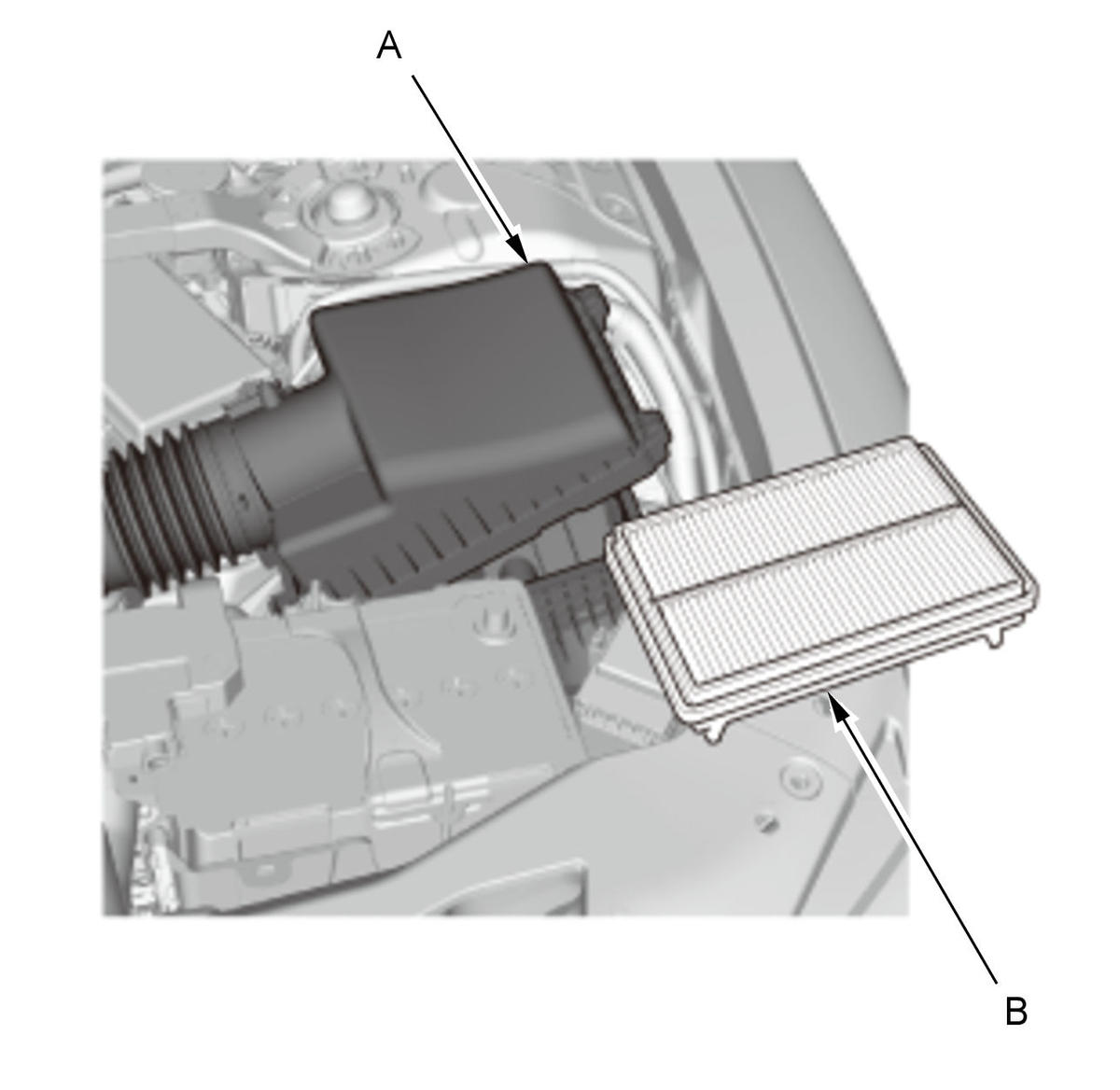

    GHH345567Courtesy of HONDA, U.S.A., INC.
    		 1. Open the air cleaner housing cover (A).

    2. Remove the air cleaner element (B).
