Door Lock Knob Switch Test: Test

Driver's Door

Driver's Door Lock Knob Switch - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

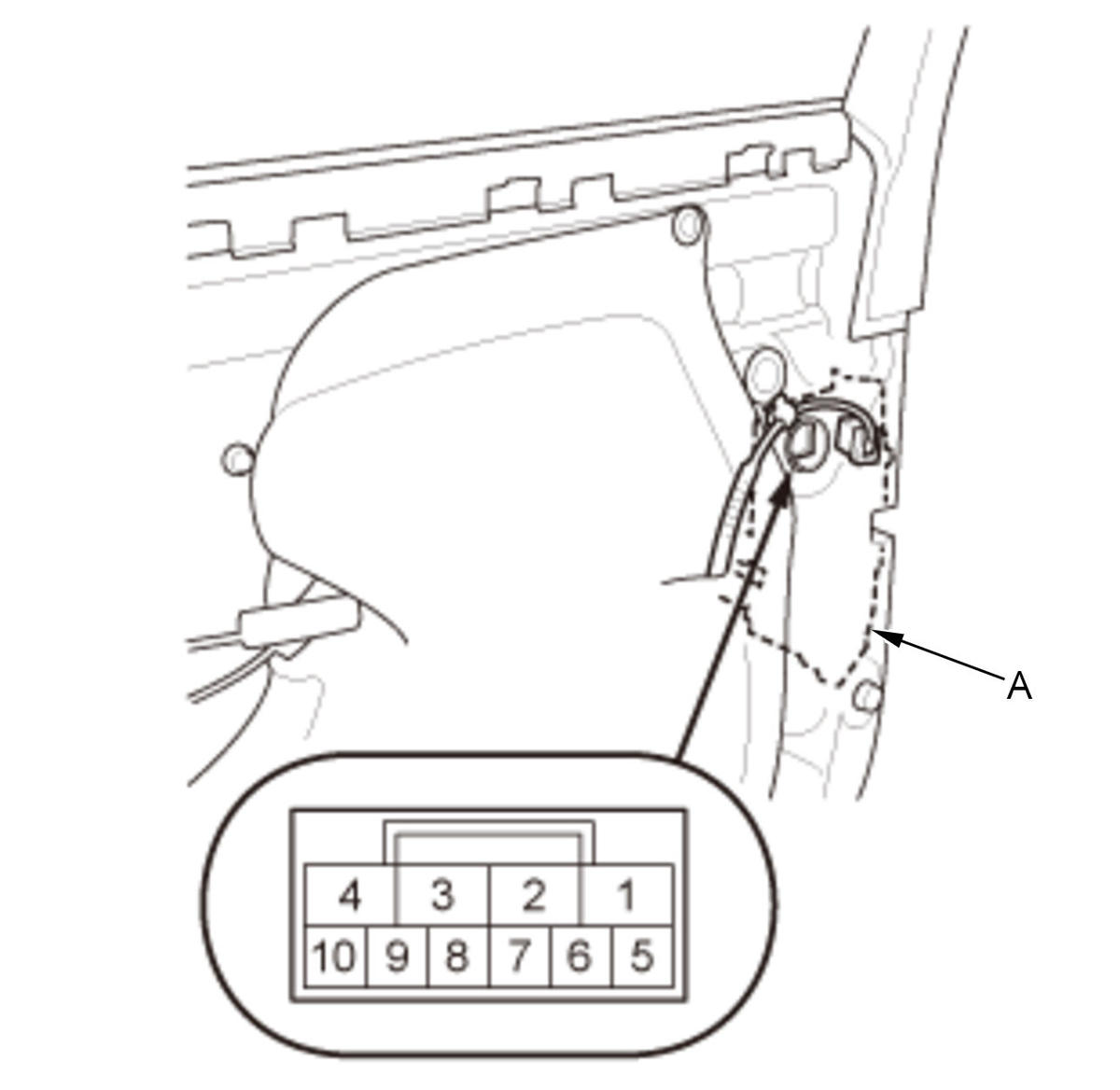

1. Disconnect the driver's door latch connector.

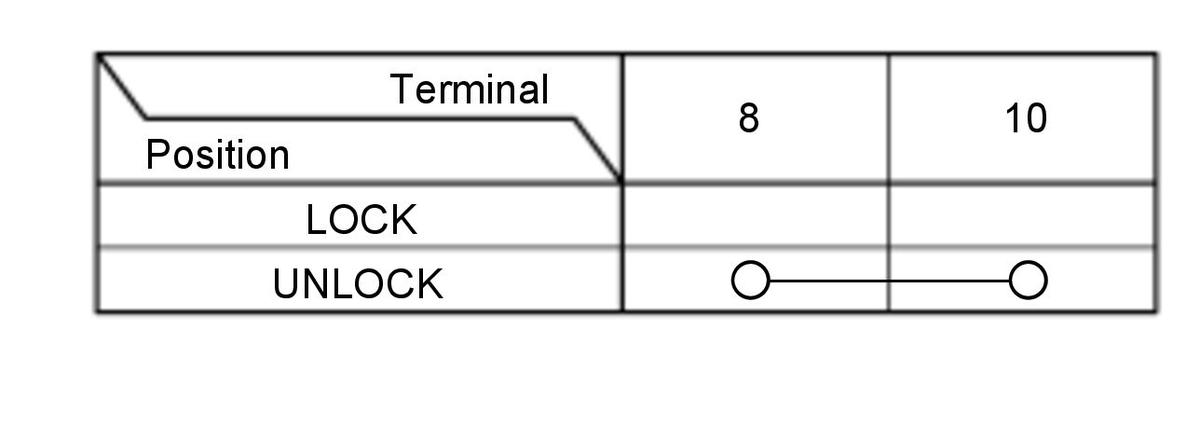

2. Check for continuity between the terminals in each switch position according to the table.

3. If the continuity is not as specified, the driver's door lock knob switch is faulty; replace the driver's door latch (A).

4. Connect the driver's door latch connector.

Driver's Door Panel - Install
Install the driver's door panel .

Front Passenger's Door
Front Passenger's Door Panel - Remove
Remove the front passenger's door panel .

Front Passenger's Door Lock Knob Switch - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

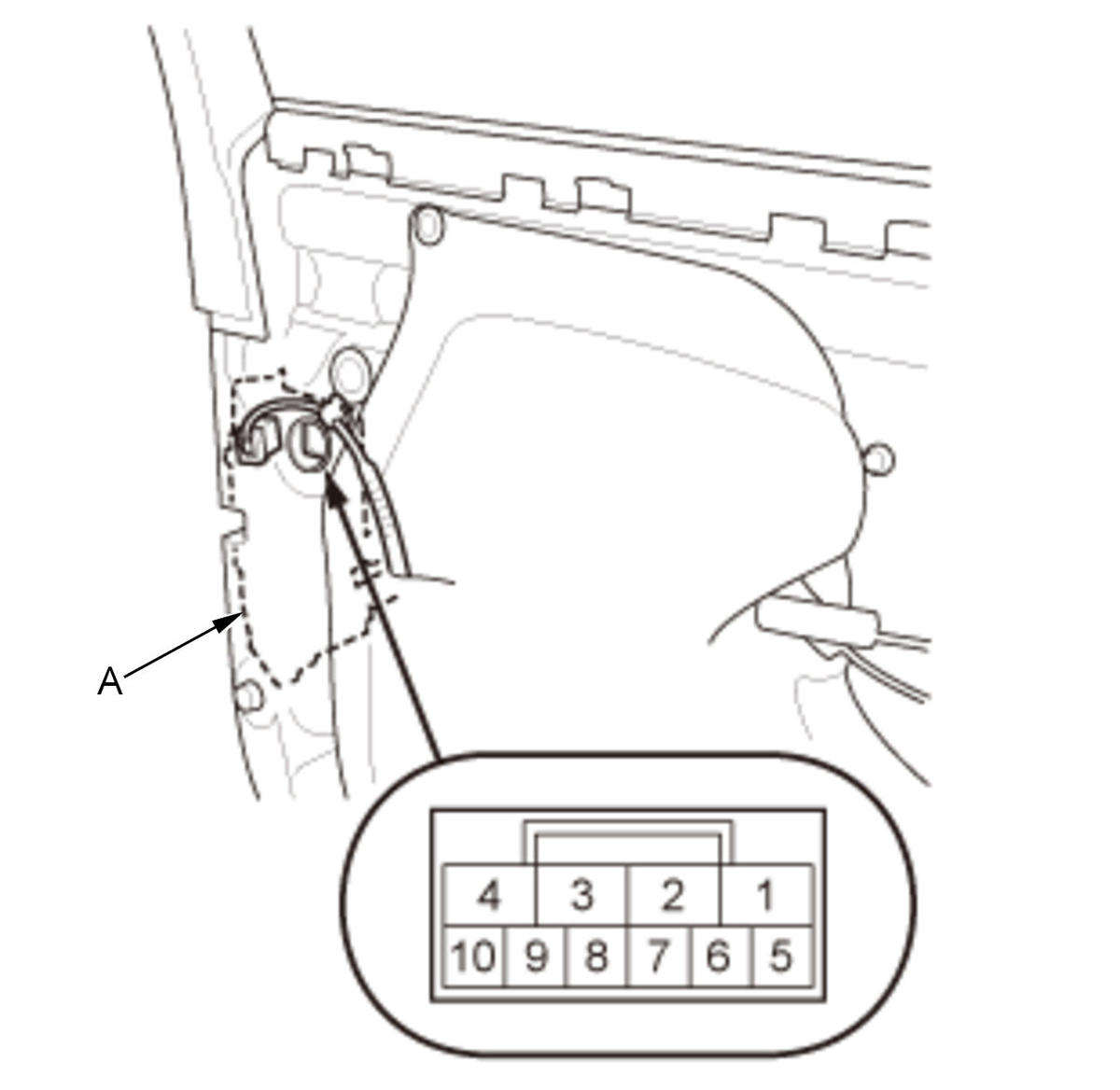

1. Disconnect the front passenger's door latch connector.

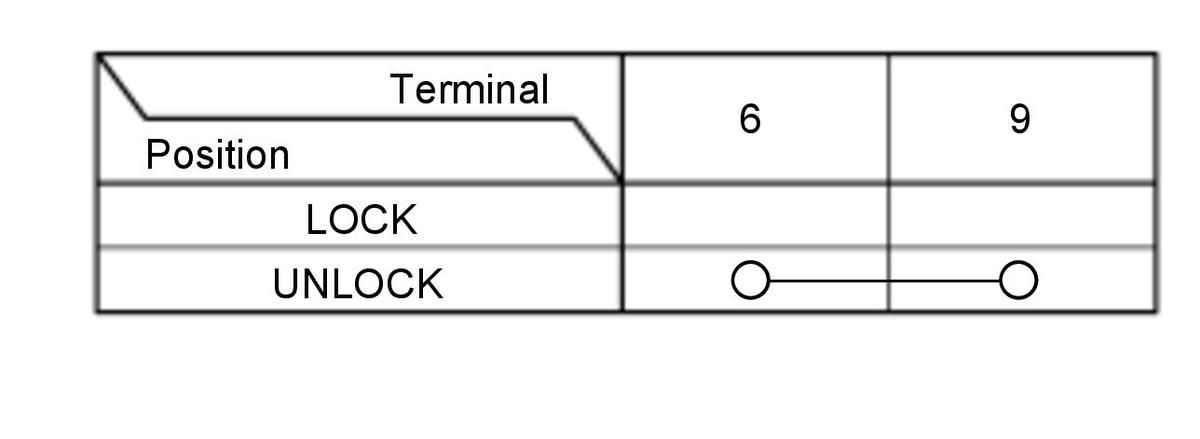

2. Check for continuity between the terminals in each switch position according to the table.

3. If the continuity is not as specified, the front passenger's door lock knob switch is faulty; replace the front passenger's door latch (A).

4. Connect the front passenger's door latch connector.

Front Passenger's Door Panel - Install
Install the front passenger's door panel .

Rear Door
Rear Door Panel - Remove
Remove the rear door panel .

Rear Door Lock Knob Switch - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

Left and Right Rear Door

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

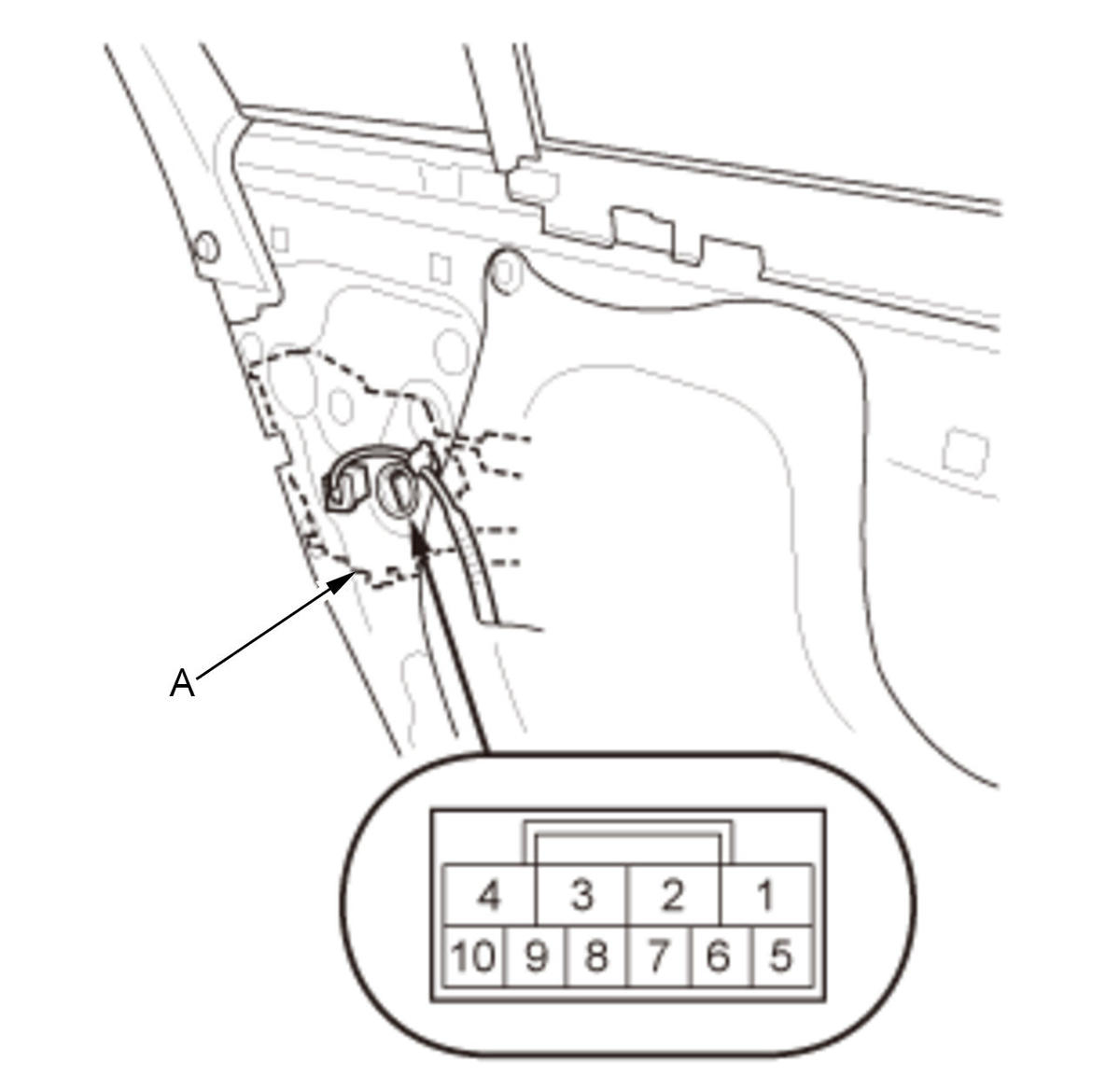

1. Disconnect the rear door latch connector.

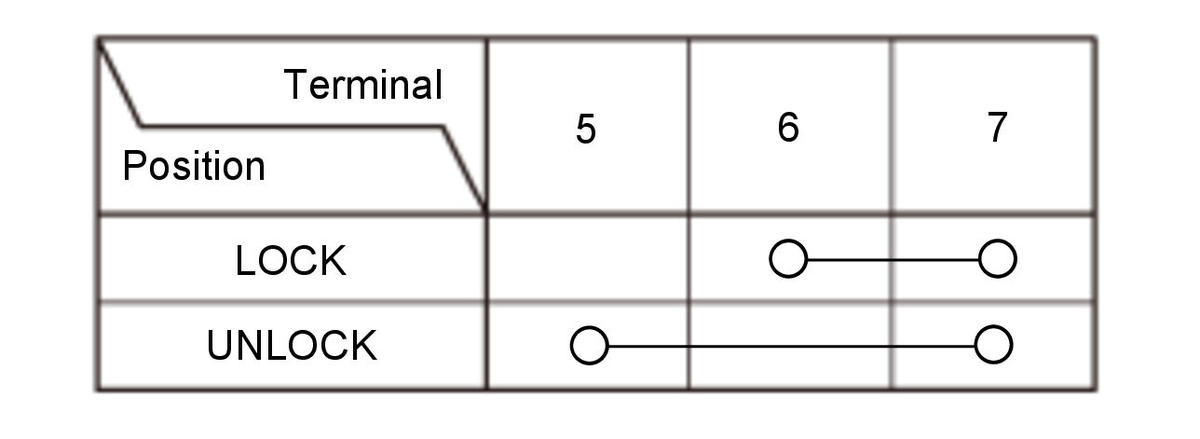

2. Check for continuity between the terminals in each switch position according to the table.

3. If the continuity is not as specified, the rear door lock knob switch is faulty; replace the rear door latch

(A).

4. Connect the rear door latch connector.
