Relay Box Locations And Control Unit Locations (Without SH-AWD): Dashboard

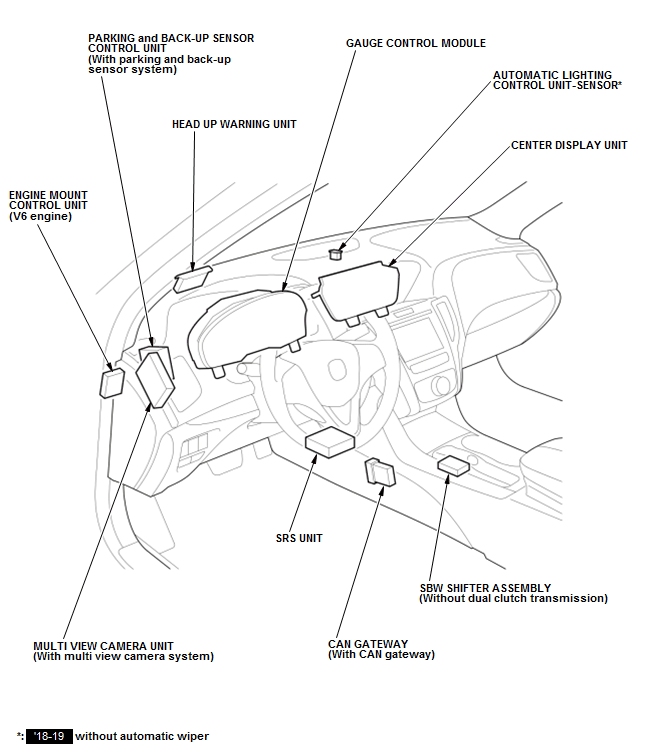

GHH197440

Courtesy of HONDA, U.S.A., INC.

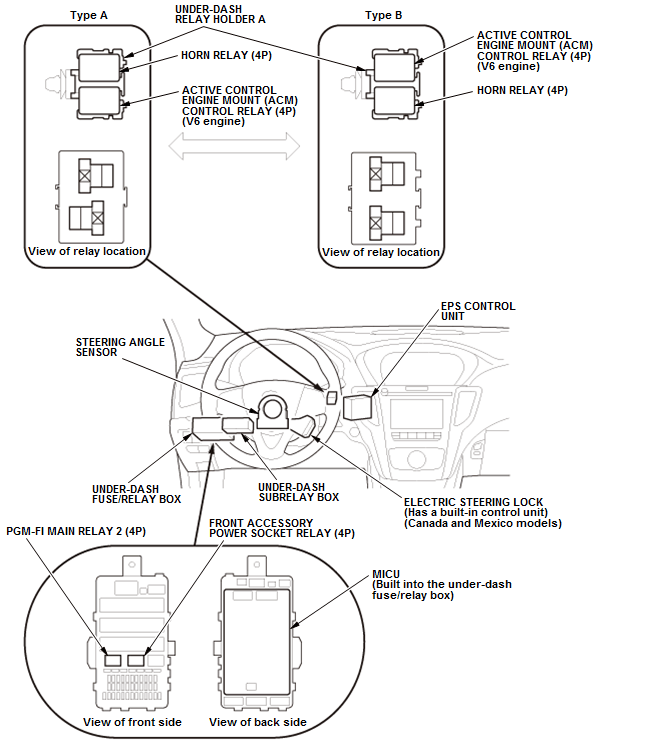

GHH197441

Courtesy of HONDA, U.S.A., INC.

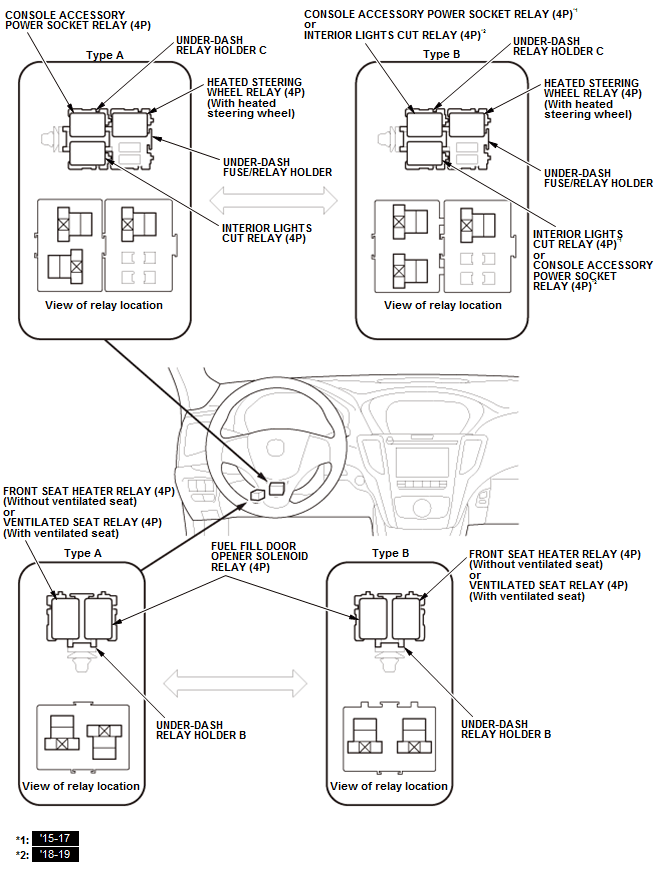

GHH197442

Courtesy of HONDA, U.S.A., INC.

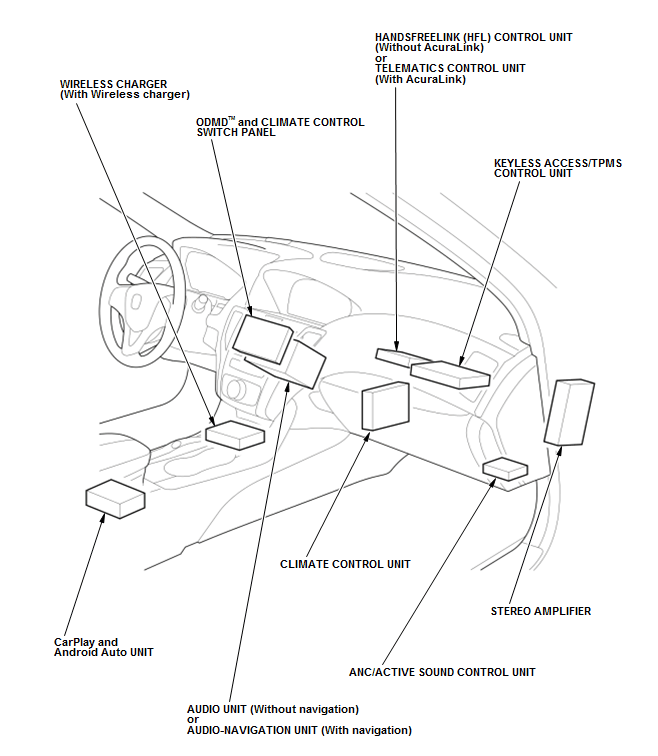

GHH197443

Courtesy of HONDA, U.S.A., INC.
