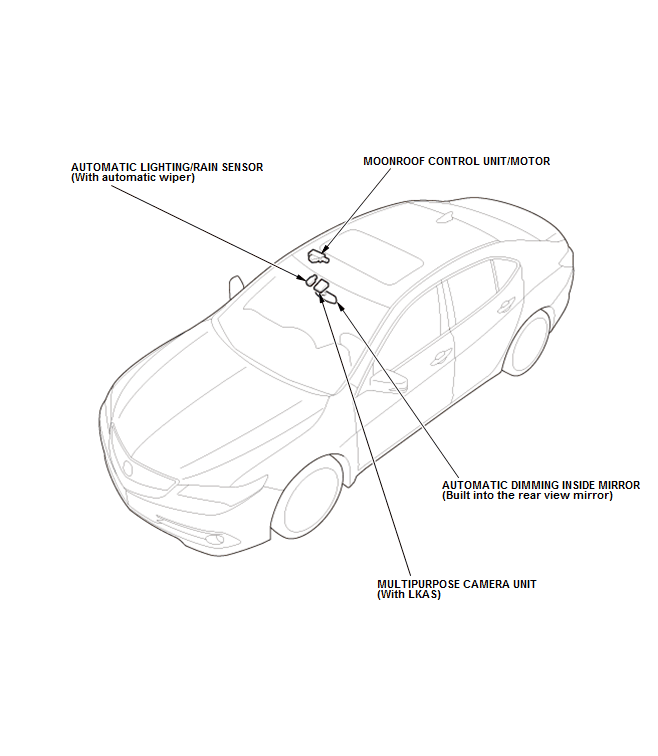

Relay Box Locations And Control Unit Locations (With SH-AWD): Roof

GHH197428

Courtesy of HONDA, U.S.A., INC.
