Relay Box Locations And Control Unit Locations
>>
Relay Box Locations And Control Unit Locations (With SH-AWD)
>>
Rear

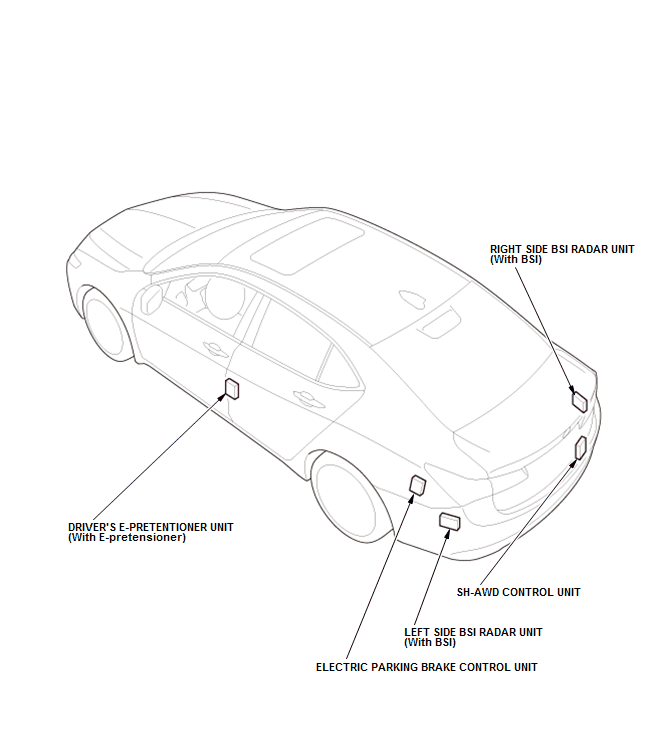

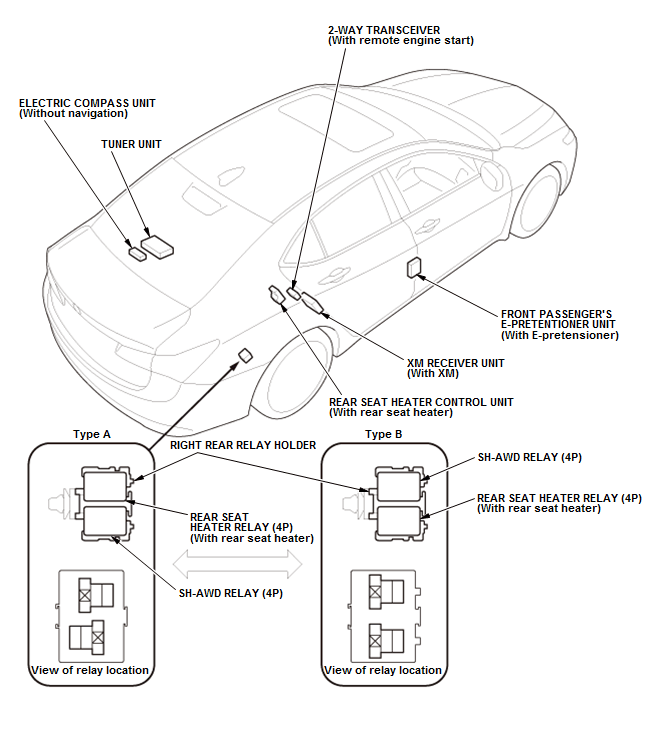

Relay Box Locations And Control Unit Locations (With SH-AWD): Rear
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
