Crankshaft Pulley Removal And Installation: Installation

  1. Crankshaft Pulley - Install
    GHH345854Courtesy of HONDA, U.S.A., INC.

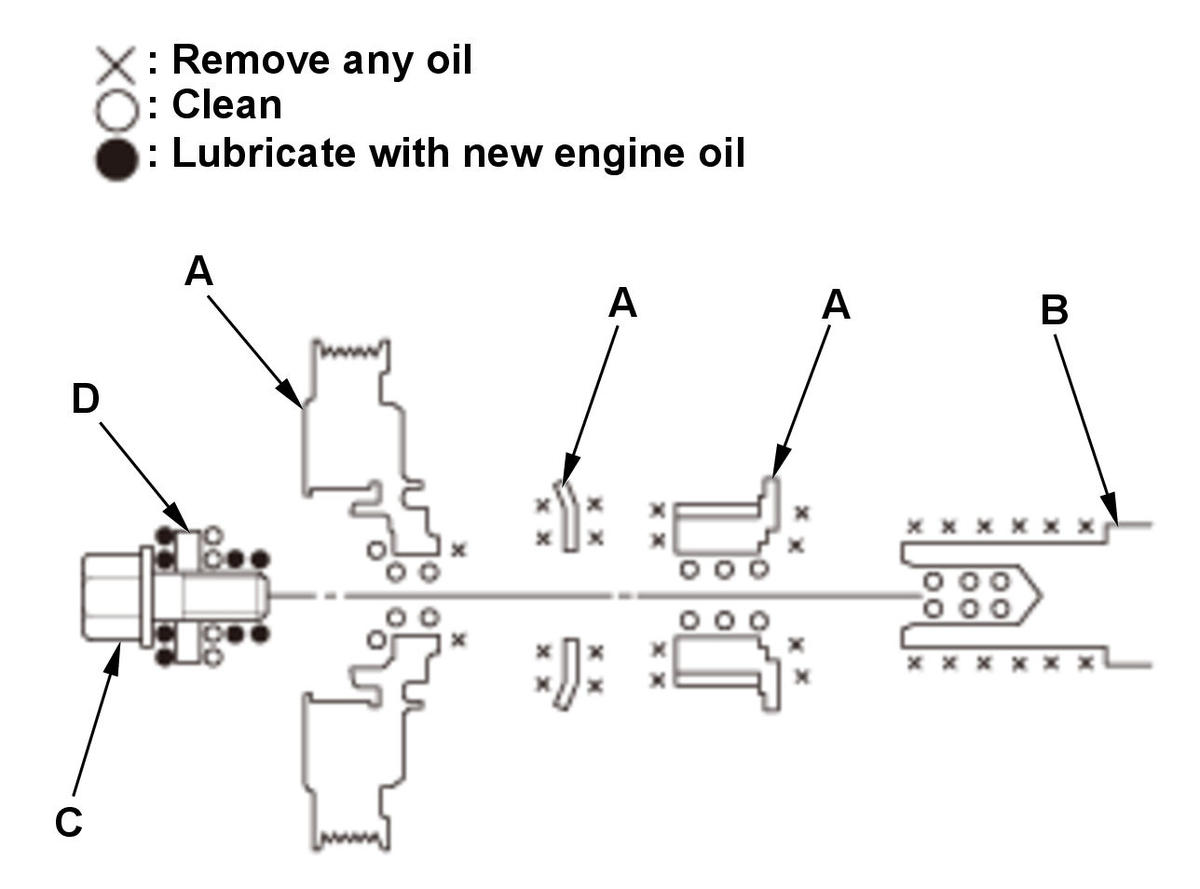

    		 1. Remove any oil and clean the pulleys (A), the crankshaft (B), the bolt (C), and the washer (D). Lubricate with new engine oil as shown.
    GHH345855GHH345856Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH345855GHH345856Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    		 2. Install the crankshaft pulley.

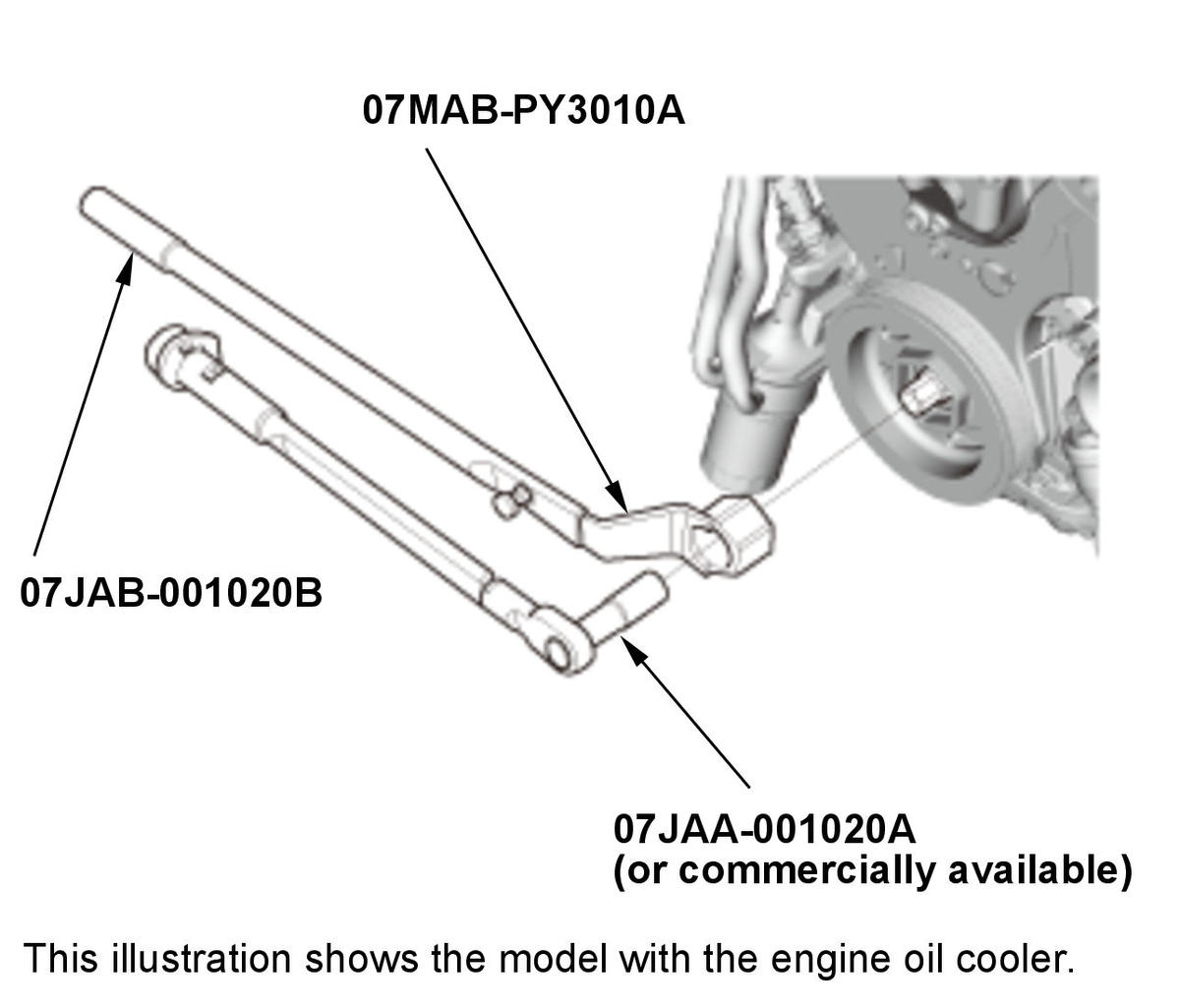

    3. Hold the pulley with the holder handle and the holder attachment, 50 mm, offset. Torque the bolt to 65 N.m (6.6 kgf.m, 48 lbf.ft) with a torque wrench and the heavy duty 19 mm socket.

    NOTE:  Do not use an impact wrench.

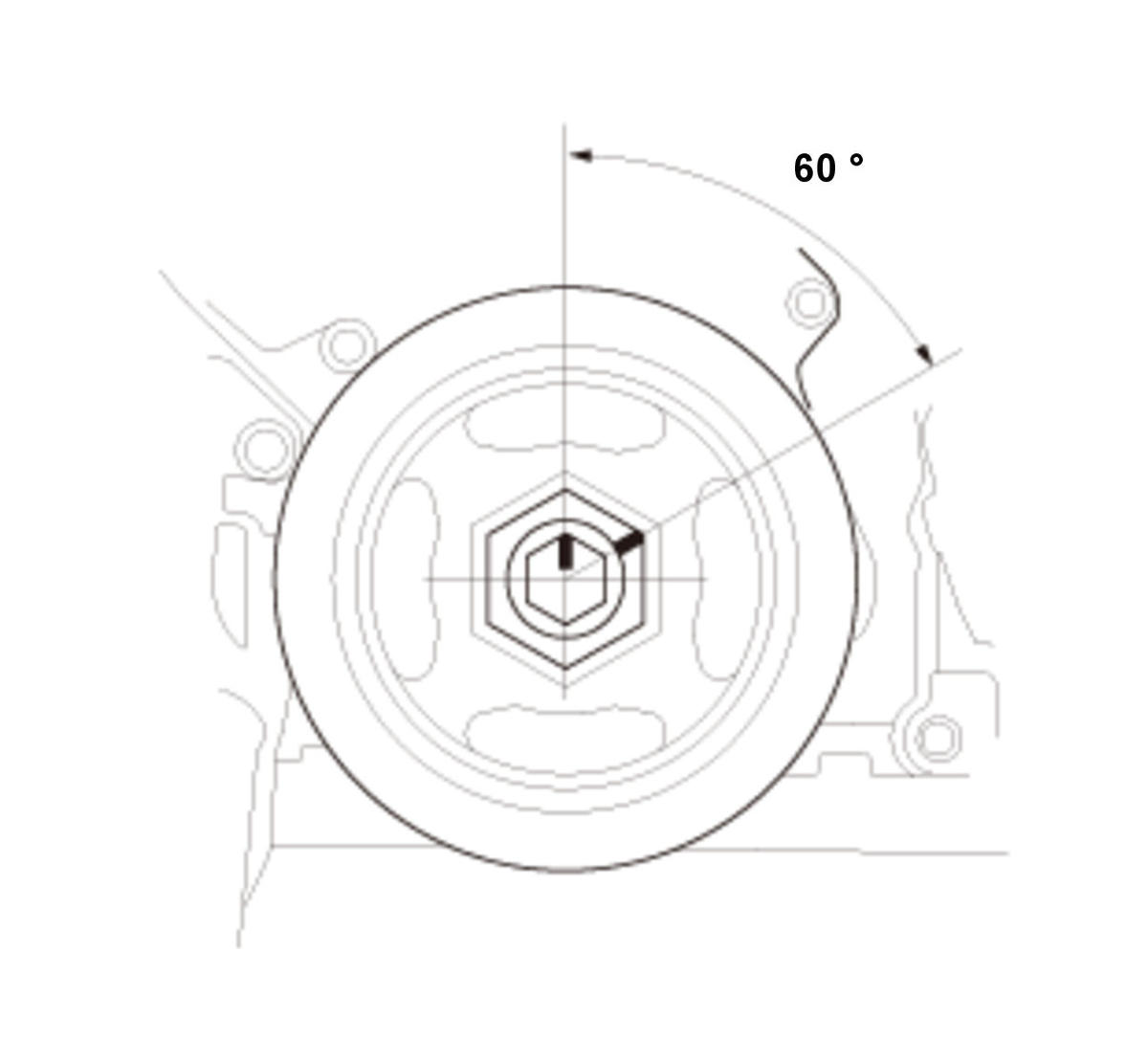

    4. Tighten the bolt an additional 60 deg..
  2. Drive Belt - Install
  3. Engine Undercover - Install
  4. Right Front Wheel - Install
