Fuel Line Inspection

Check the fuel system lines and hoses for damage, leaks, and deterioration. Replace any damaged parts.

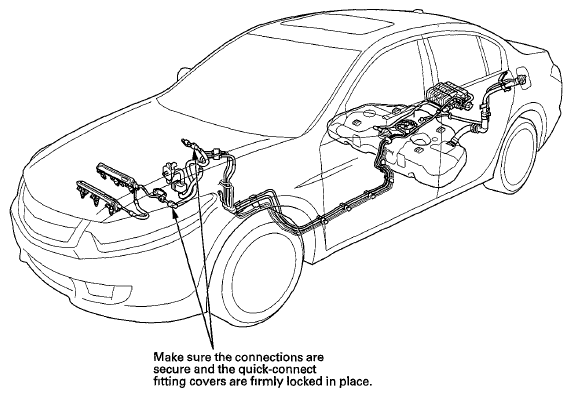

Fig 1: Checking Fuel System Lines And Hoses For Damage

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Check all clamps, and make sure they are properly positioned and tightened.

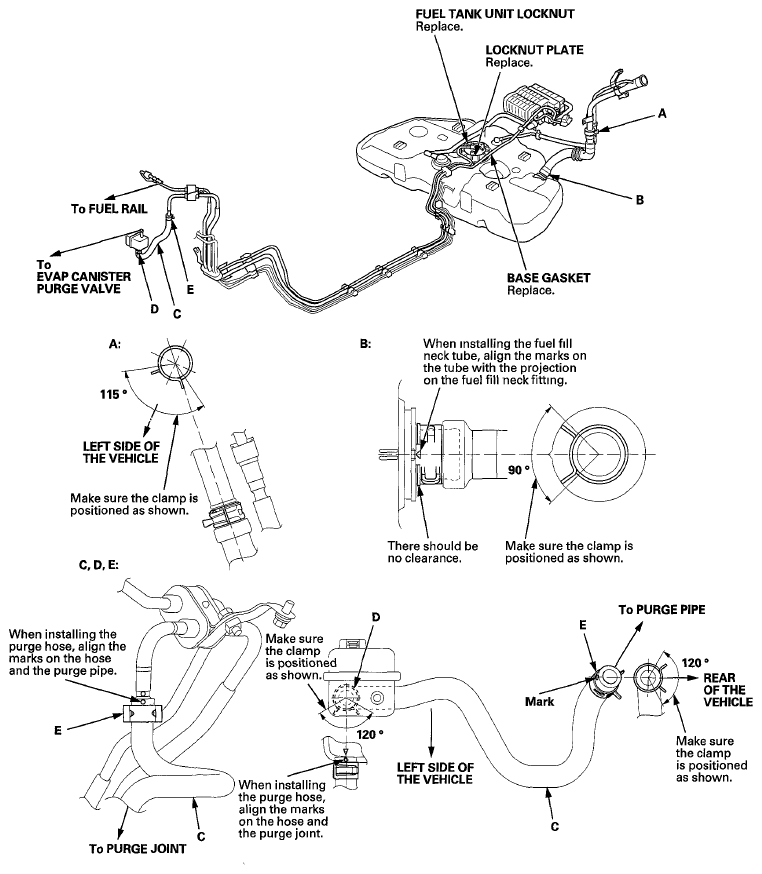

Fig 2: Checking Fuel System Lines Clamps

Courtesy of AMERICAN HONDA MOTOR CO., INC.
