EGR Valve Replacement

  1. Disconnect the EGR valve 5P connector (A).

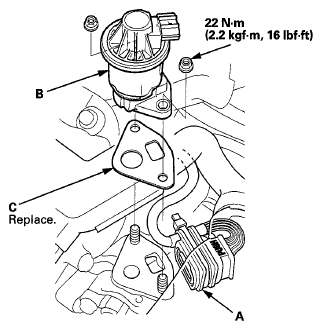

    Fig 1: EGR Valve And 5P Connector With Torque Specifications
    G06944414Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the EGR valve (B).
  3. Install the parts in the reverse order of removal with a new gasket (C).
