Relays And Control Unit Locations (V6): Dashboard: Notes

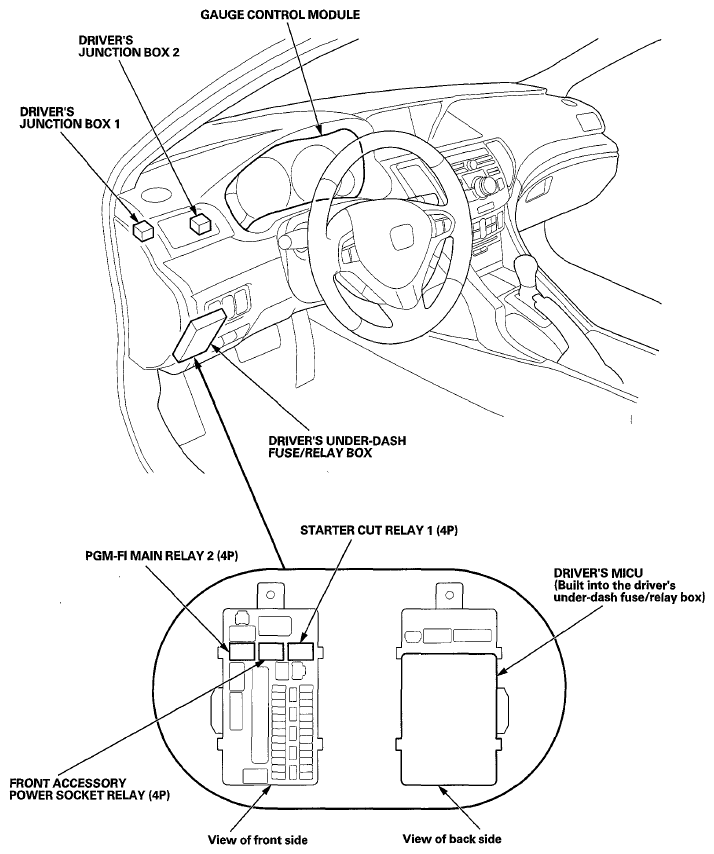

Fig 1: Identifying Dashboard Relay Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.

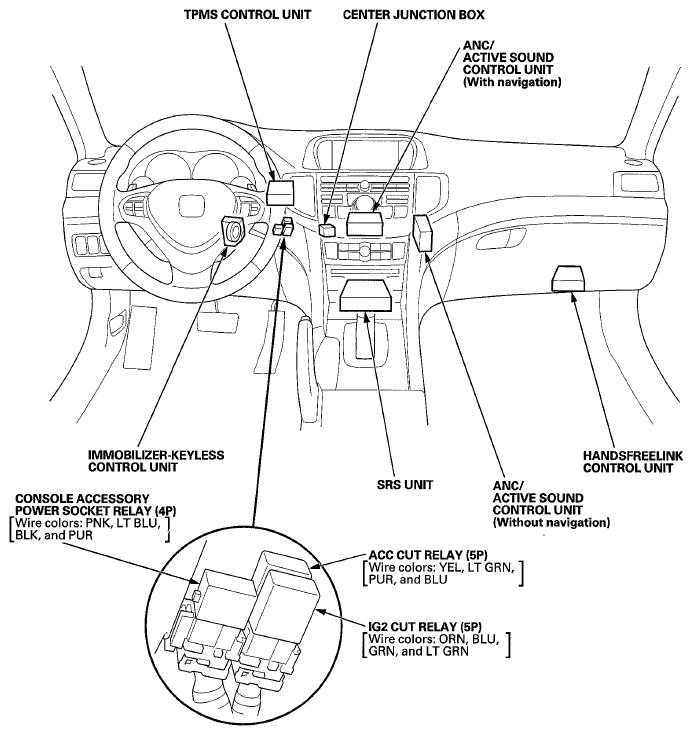

Fig 2: Identifying Console Accessory Power Socket Relay

Courtesy of AMERICAN HONDA MOTOR CO., INC.
