Connector-to-Fuse/Relay Box Index

Ref Socket Cavities Connects to Notes
1 Blower Motor Relay 4
2 Horn Relay 4
3 PGM-FI Main Relay 4
4 PGM-FI Sub-Relay 4
5 Ignition Coil Relay 4
6 ETCS Control Relay 4
7 Starter Cut Relay 2 4
8 Rear Window Defogger Relay 4
9 T101   Starter Cable (see STARTER CABLE )
10 T102   Engine Wire Harness (see ENGINE WIRE HARNESS (ENGINE SECTION) )
11 A (ELD Unit) 3 Left Engine Compartment Wire Harness (see LEFT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) )
12 A/C Compressor Clutch Relay 4
13 C 5 Left Engine Compartment Wire Harness (see LEFT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) )
14 B 14 Left Engine Compartment Wire Harness (see LEFT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) )

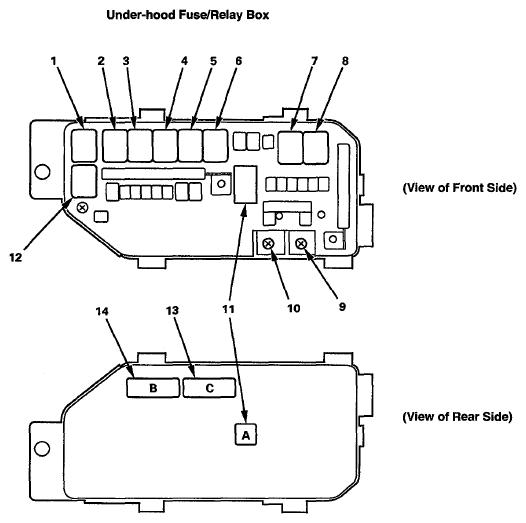

Fig 1: Under-Hood Fuse/Relay Box (6-17)
G07749355Courtesy of AMERICAN HONDA MOTOR CO., INC.
