Connector-to-Fuse/Relay Box Index

Ref	Socket	Cavities	Connects to
1	A	38	Dashboard Wire Harness (see DASHBOARD WIRE HARNESS (VIEW OF MIDDLE TO PASSENGER'S SIDE) )
2	D	28	Audio Wire Harness (see AUDIO WIRE HARNESS (NAVIGATION) and AUDIO WIRE HARNESS (WITHOUT NAVIGATION) )
3	G	16	Not Used
4	H	38	Right Side Wire Harness (see RIGHT SIDE WIRE HARNESS )
5	F	2	Not Used
6	E	18	Right Engine Compartment Wire Harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD BRANCH) )
7	C (Passenger's MICU)	12	Dashboard Wire Harness (see DASHBOARD WIRE HARNESS (VIEW OF MIDDLE TO PASSENGER'S SIDE) )
8	B	1	Dashboard Wire Harness (see DASHBOARD WIRE HARNESS (VIEW OF MIDDLE TO PASSENGER'S SIDE) )

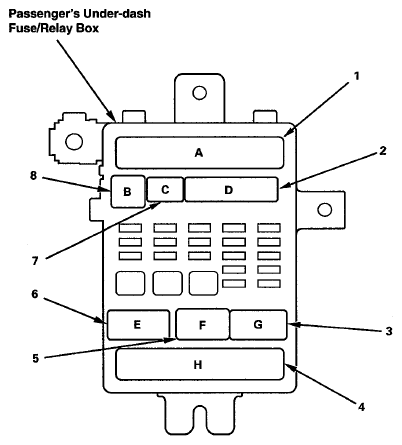

Fig 1: Passenger's Under-Dash Fuse/Relay Box (6-11)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
