TPMS Control Unit (View 267)

GRY
Under Left Side of Dash
On Dashboard Wire Harness

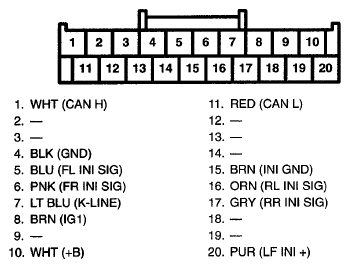

Fig 1: TPMS Control Unit Connector Terminals (View 267)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
