Recirculation Control Motor (View 219)
Recirculation Control Motor (View 219)
GRN
Behind Glove Box
On A/C Wire Harness

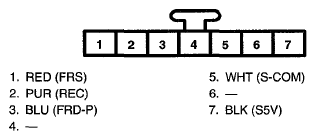

Fig 1: Recirculation Control Motor Connector Terminals (View 219)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
