Mode Control Motor (View 218)

GRN
Under Right Side of Dash
On A/C Wire Harness

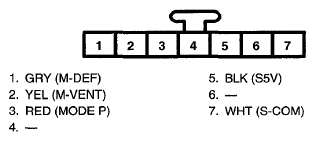

Fig 1: Mode Control Motor Connector Terminals (View 218)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
