EPS Control Unit (View 303)

Under Right Side of Dash
On Right Engine Compartment Wire Harness
Connector A
- BLU

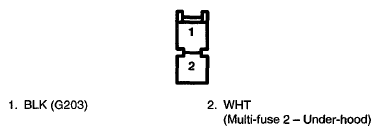

  Fig 1: EPS Control Unit Connector A Terminals (View 303)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector B
- BLU

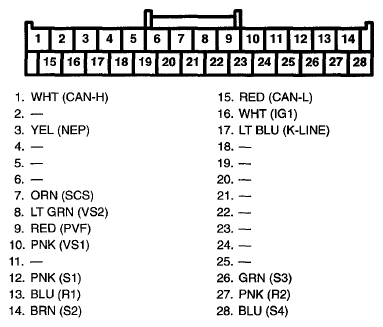

  Fig 2: EPS Control Unit Connector B Terminals (View 303)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector C
- BLK

  Fig 3: EPS Control Unit Connector C Terminals (View 303)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector D
- GRY

  Fig 4: EPS Control Unit Connector D Terminals (View 303)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
