C101 (View 249)
C101 (View 249)
BLK/GRY
Left Side of Engine Compartment
Connects Left Engine Compartment Wire Harness to Engine Wire Harness

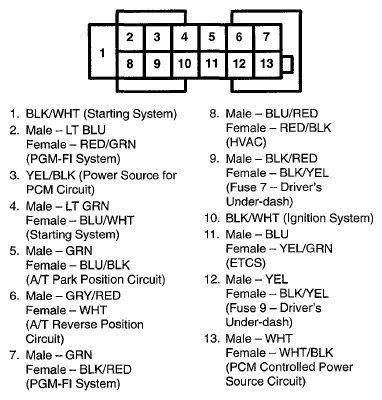

Fig 1: C101 Connector Terminals (View 249)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
