ANC/Active Sound Control Unit (View 255)

GRY
Behind Middle of Dash
On Audio Wire Harness

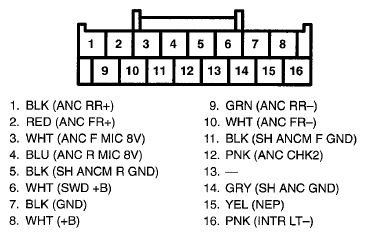

Fig 1: ANC/Active Sound Control Unit Connector Terminals (View 255)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
