Steering Angle Sensor Replacement

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

1. Turn the ignition switch to LOCK (0).
2. With the front wheels in the straight-ahead position and the steering wheel centered, then remove the steering wheel (see STEERING WHEEL REMOVAL ).
3. Remove the steering column covers (see SIDE DEFOGGER VENT TRIM REMOVAL/INSTALLATION ) and the cable reel (see DISPOSAL OF DAMAGED COMPONENTS ).
4. Remove the combination switch assembly (see INSTALLATION ).

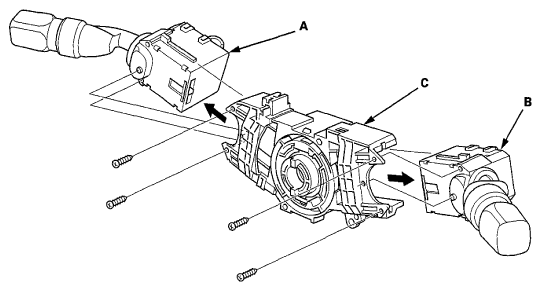

5. Remove the combination light switch (A) and the wiper/washer switch (B) from the combination switch body assembly (C).
   Fig 1: Removing Combination Light Switch And Wiper/Washer Switch From Combination Switch Body Assembly

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Install the combination switch body assembly in the reverse order of removal, and note these items:
   NOTE:

   • Do not remove the steering angle sensor from the combination switch body assembly.
   • When installing the cable reel, set the turn signal canceling sleeve position so that the arrow points straight up (see INSTALLATION ).
   • Tighten the combination switch assembly/cable reel mounting screws in the proper sequence (see CRANKSHAFT AND PISTON REMOVAL ).
