Component Location Index

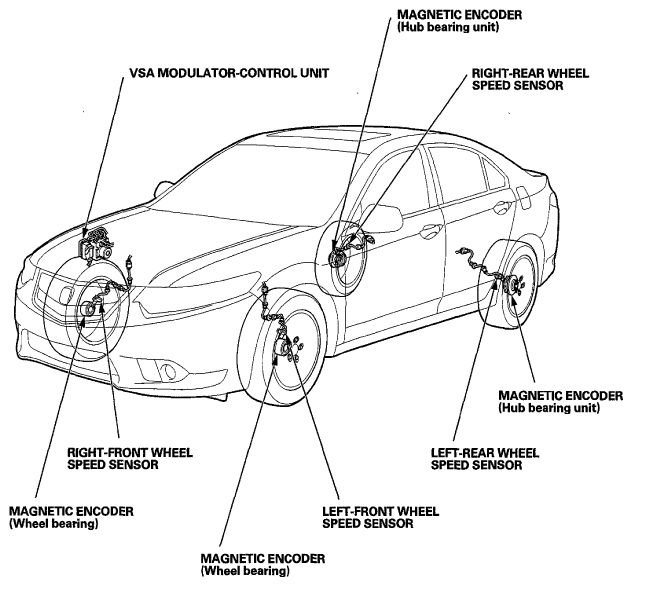

Fig 1: Identifying VSA System Component Location (1 Of 2)
G06945563Courtesy of AMERICAN HONDA MOTOR CO., INC.

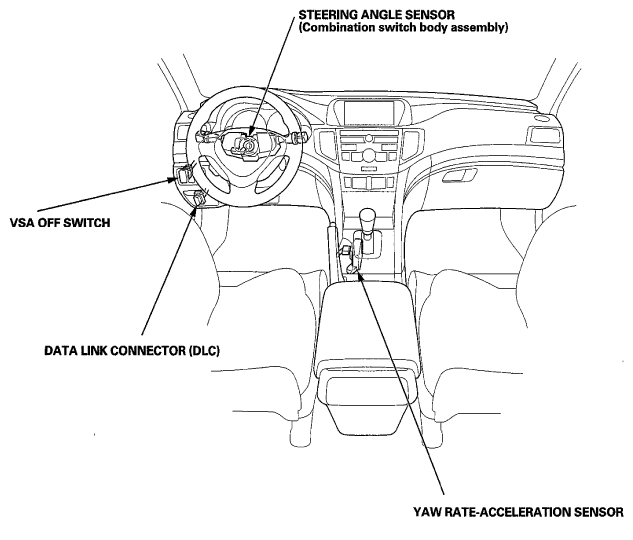

Fig 2: Identifying VSA System Component Location (2 Of 2)
G06945564Courtesy of AMERICAN HONDA MOTOR CO., INC.
