Driver's Power Seat Motor Test

NOTE: SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or servicing.

Remove the driver's seat (see FRONT SEAT REMOVAL/INSTALLATION ).
Disconnect the 5P connector from each power seat motor.
NOTE: All connectors are terminal side of male terminals.

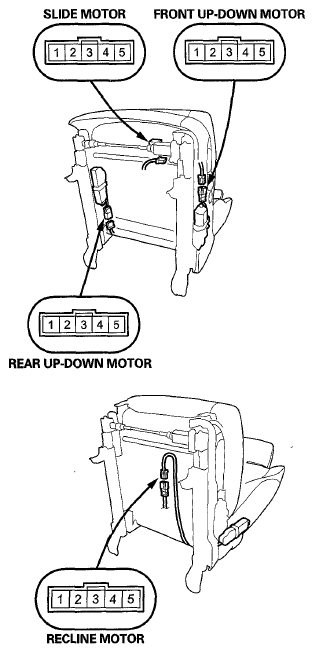

Fig 1: Identifying Power Seat Motor 5P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Test each motor by connecting power and ground according to the table. When the motor stops running, disconnect battery power immediately.

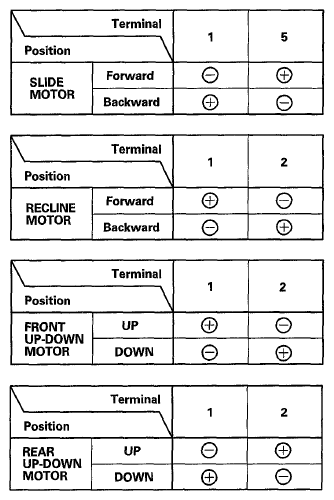

Fig 2: Power Seat Motor Terminal Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, replace:
- Slide motor (see FRONT SEAT SLIDE MOTOR REPLACEMENT )
- Front up-down motor (see FRONT SEAT UP-DOWN MOTOR REPLACEMENT )
- Rear up-down motor (see REAR UP-DOWN MOTOR )
- Recline motor (see FRONT SEAT RECLINE MOTOR REPLACEMENT )
