Throttle Body Disassembly/Reassembly

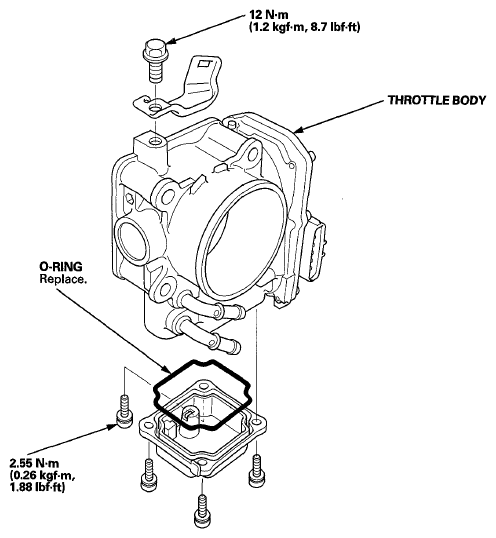

Fig 1: Throttle Body, O-Ring And Mounting Bolts With Torque Specifications

G07768003

Courtesy of AMERICAN HONDA MOTOR CO., INC.
