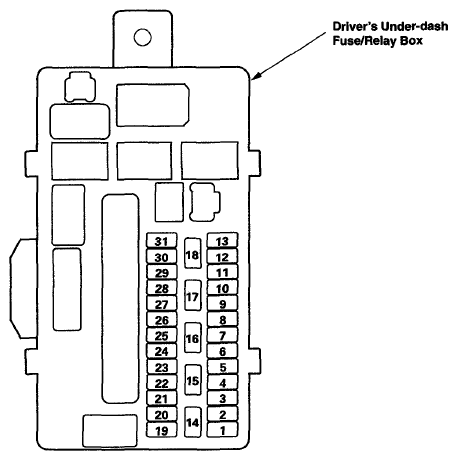

Fuse-to-Components Index
| Fuse Number | Fuse Name | Amps | See | Component or Circuit Protected | Notes |
|---|---|---|---|---|---|
| 1 | - | - | POWER DISTRIBUTION | Not Used | |
| 2 | SEAT MEMORY | 7.5A | POWER DISTRIBUTION | Power Seat Control Unit | |
| 3 | WASHER | 15A | POWER DISTRIBUTION | Windshield Washer Relay | |
| 4 | WIPER | 10A | POWER DISTRIBUTION | Windshield Wiper Relay | |
| 5 | METER | 7.5A | POWER DISTRIBUTION | AcuraLink Control Unit (XM Receiver) (AcuraLink), A/T Reverse Diode A, A/T Reverse Relay, Automatic Dimming Inside Mirror, Driver's MICU, Electrical Compass Unit (Electrical Compass), Gauge Control Module, Passenger's MICU, Shift Lock Solenoid, TPMS Control Unit | |
| 6 | ABS/VSA | 7.5A | POWER DISTRIBUTION | EPS Control Unit, VSA Modulator-Control Unit, Yaw Rate-Lateral Acceleration Sensor | |
| 7 | ACG | 15A | POWER DISTRIBUTION | Alternator, Brake Pedal Position Switch, ELD Unit, Engine Mount Control Solenoid Valve, EVAP Canister Purge Valve, PCM | |
| 8 | STARTER DIAG | 7.5A | POWER DISTRIBUTION | PCM | |
| 9 | FUEL PUMP | 20A | POWER DISTRIBUTION | Fuel Pump Relay, Immobilizer-Keyless Control Unit, PCM | |
| 10 | VB SOL | 10A | POWER DISTRIBUTION | PCM | |
| 11 | SRS | 10A | POWER DISTRIBUTION | SRS Unit | |
| 12 | ODS | 7.5A | POWER DISTRIBUTION | Front Passenger's Airbag Cut-off Indicator (USA, Canada), ODS Unit, SRS Unit | |
| 13 | STS | 7.5A | POWER DISTRIBUTION | PCM | |
| 14 | - | - | POWER DISTRIBUTION | Not Used | |
| 15 | DRL | 7.5A | POWER DISTRIBUTION | Driver's MICU | |
| 16 | A/C | 7.5A | POWER DISTRIBUTION , POWER DISTRIBUTION | A/C Compressor Clutch Relay, A/C Condenser Fan Relay, A/C Diode A, Audio-HVAC Display Unit (without Navigation), Audio/Navigation Switch Panel (Navigation), Blower Motor Relay, Climate Control Unit, Driver's Seat Heater Switch, Fan Control Relay, Front Passenger's Seat Heater Switch, Power Mirror Switch, Power Window Master Switch, Rear Window Defogger Relay |
| Fuse Number | Fuse Name | Amps | See | Component or Circuit Protected | Notes |
|---|---|---|---|---|---|
| 17 | ACC KEY LOCK | 7.5A | POWER DISTRIBUTION | Driver's MICU | |
| 18 | ACCESSORY | 7.5A | POWER DISTRIBUTION | ACC Cut Relay, AcuraLink Control Unit (XM Receiver) (AcuraLink), Audio Unit (without Navigation), Audio-Navigation Unit (Navigation), Cigarette Lighter Relay (Mexico), Console Accessory Power Socket Relay, Front Accessory Power Socket Relay (USA, Canada), Front HFL-Navigation-ANC/ Active Sound Control Microphone, HandsFreeLink Control Unit, Ignition Key Switch/Key Light, Interface Dial (Navigation), Navigation Display Unit (Navigation) | |
| 19 | DR P/SEAT (SLIDE) | 20A | POWER DISTRIBUTION | Power Seat Control Unit | |
| 20 | MOON ROOF | 20A | POWER DISTRIBUTION | Moonroof Control Unit/Motor | |
| 21 | DR P/SEAT (REC) | 20A | POWER DISTRIBUTION | Power Seat Control Unit | |
| 22 | P/W L REAR | 20A | POWER DISTRIBUTION | Left Rear Power Window Relay | |
| 23 | FR ACC SOCKET | 20A | POWER DISTRIBUTION | Cigarette Lighter Relay (Mexico), Front Accessory Power Socket Relay (USA, Canada) | |
| 24 | P/W DR | 20A | POWER DISTRIBUTION | Power Window Master Switch | |
| 25 | DOOR LOCK L | 15A | POWER DISTRIBUTION | Driver's Door Unlock Relay, Door Lock Relay, Door Unlock Relay, Trunk Lid Opener Relay | |
| 26 | FR FOG L | 10A | POWER DISTRIBUTION | Driver's MICU, Left Fog Light | |
| 27 | SMALL (EXTR) L | 10A | POWER DISTRIBUTION | Driver's MICU, Left Brake Light/Taillight, Left Front Turn Signal/Parking Light, Left License Plate Light, Left Rear Side Marker Light, Right Brake Light/Taillight, Right License Plate Light, Right Rear Side Marker Light | |
| 28 | H/L L HI | 10A | POWER DISTRIBUTION | Driver's MICU, Left Headlight (High Beam) | |
| 29 | TPMS | 10A | POWER DISTRIBUTION | TPMS Control Unit | |
| 30 | H/L L LO | 15A | POWER DISTRIBUTION | Driver's MICU, Left HID Unit | |
| 31 | - | - | POWER DISTRIBUTION | Not Used |
