Secondary Shaft Bearing Replacement

Special Tools Required

Adjustable Bearing Puller, 45- 75 mm 07YAC-0010100
Bearing Driver Attachment, 62 x 68 mm 07746-0010500
Driver Handle, 15 x 135L 07749-0010000
Slide Hammer 07936-371020A
Bearing Remover Shaft 07JAC-PH80200

Remove the secondary shaft bearing from the torque converter housing using the 45- 75 mm adjustable bearing puller, the bearing remover shaft, and the slide hammer.

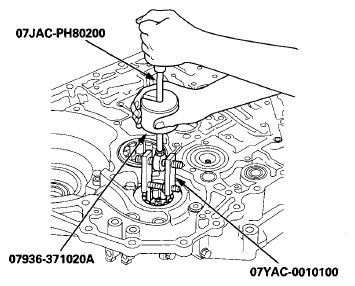

Fig 1: Removing Secondary Shaft Bearing Using Bearing Puller, Bearing Remover Shaft And Slide Hammer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Cover the tip of the 1st clutch ATF feed pipe with a shop rag. Apply air pressure to the ATF feed pipe hole (A) of the 1st clutch hydraulic circuit, and remove the ATF guide collar (B), the 28.6 x 40.8 x 13 mm secondary shaft bearing (C), and the ATF feed pipe assembly (D) from the transmission housing.

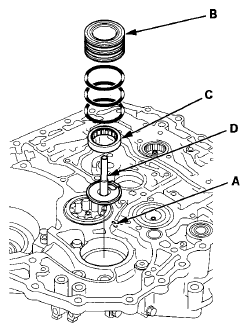

Fig 2: Identifying ATF Feed Pipe Hole, ATF Guide Collar, Secondary Shaft Bearing And ATF Feed Pipe Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install a new O-ring (A) on the ATF feed pipe assembly (B), then install the ATF feed pipe assembly in the torque converter housing by aligning the finger (C) with the groove (D).

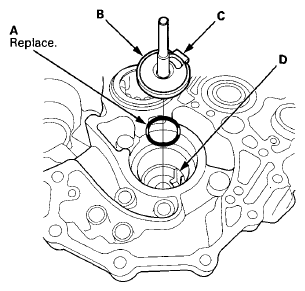

Fig 3: Identifying O-Ring, ATF Feed Pipe Assembly, Finger And Groove
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the 28.6 x 40.8 x 13 mm bearing (A) into the torque converter housing.

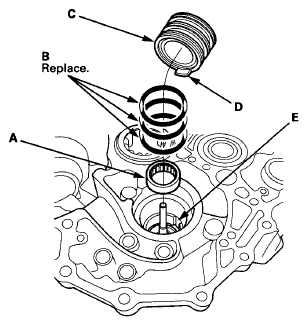

Fig 4: Identifying Bearing, O-rings, ATF Guide Collar, Finger And Groove
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install new O-rings (B) on the ATF guide collar (C), then install the guide collar in the torque converter housing by aligning the finger (D) with the groove (E).
Install the bearing until it bottoms in the direction shown in the torque converter housing using the 15 x 135L driver handle and the 62 x 68 mm bearing driver attachment.

Fig 5: Installing Bearing In Torque Converter Housing Using Driver Handle And Bearing Driver Attachment
