Exploded View

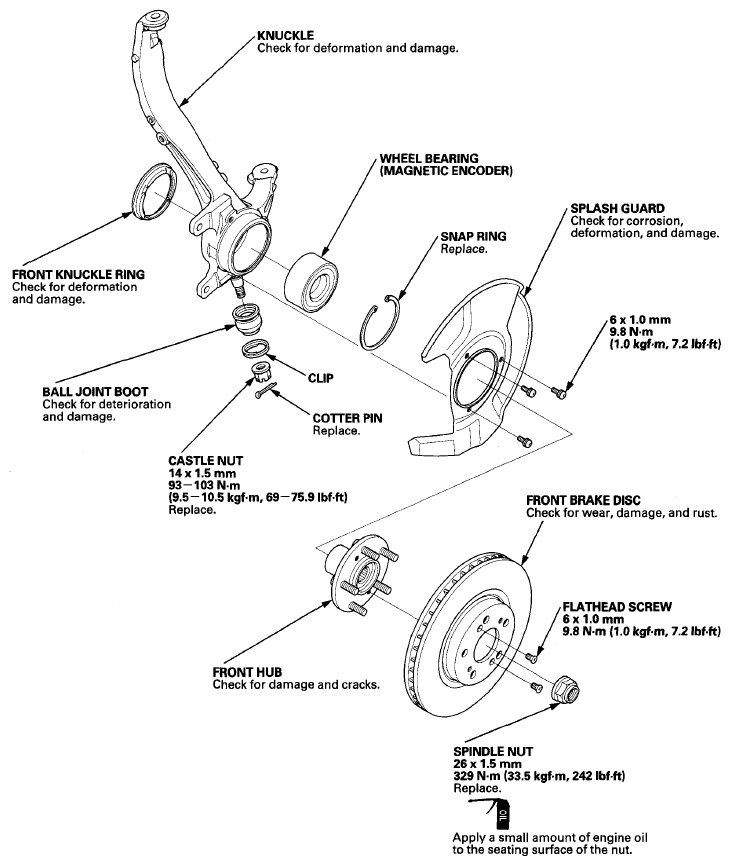

Fig 1: Exploded View Of Knuckle/Hub/Wheel Bearing With Torque Specifications

G08070222

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Ball Joint Remover, 28 mm 07MAC-SL0A202
Ball Joint Thread Protector, 14 mm 07AAE-SJAA100
Ball Joint Thread Protector, 12 mm 07AAF-SDAA100
Ball Joint Thread Protector, 10 mm 07AAF-SECA120
Hub Dis/Assembly Pin, 42mm 07GAF-SD4A100
Attachment, 72 x 75 mm 07746-0010600
Driver Handle, 15 x 135L 07749-0010000
Oil Seal Driver Attachment, 96 mm 07ZAD-PNAA100
Support Base 07965-SD90100

NOTE: Refer to the EXPLODED VIEW as needed during the following procedure.
