Drive Plate Removal and Installation (2013-18): Installation

  1. Drive Plate Assembly - Install

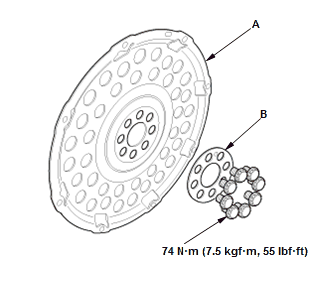

    Fig 1: Drive Plate Assembly With Torque Specifications
    GHH73091Courtesy of HONDA, U.S.A., INC.
      1. Install the drive plate (A) and the washer (B)

    2. Tighten the eight bolts in a crisscross pattern in at least two steps.
  2. Transmission Assembly - Install
      1. Install the transmission assembly .
