VSA Sensor Neutral Position Memorization (2013-18): Procedure

HDS DLC - Connection

Courtesy of HONDA, U.S.A., INC.

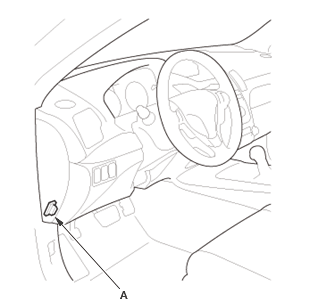

1. Connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.
2. Press the engine start/stop button to select the ON mode.
3. Make sure the HDS communicates with the vehicle. If it does not communicate, go to the DLC circuit troubleshooting - Refer to: DLC Circuit Troubleshooting (2013-15), or DLC Circuit Troubleshooting (2016-18) .

VSA Sensor Neutral Position - Memorize

NOTE: Do not press the brake pedal during this procedure.

1. Park the vehicle on a flat and level surface, with the steering wheel in the straight ahead position

2. Select VSA ADJUSTMENT, then select ALL SENSORS with the HDS, and follow the screen prompts.

NOTE: See the HDS Help menu for specific instructions.

Steering Angle Sensor Neutral Position - Clear

1. Do the steering angle sensor neutral position clear .
