Rear Power Window Motor Test (2013-18): Test

  1. Rear Door Panel - Remove
      1. Remove the rear door panel .
  2. Rear Power Window Motor - Test
    GHH78878GHH78879Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH78878GHH78879Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

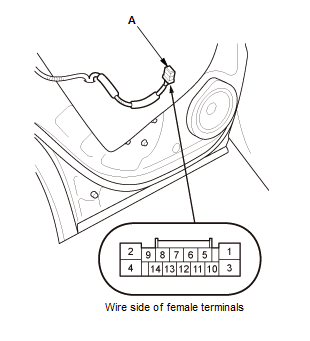

    		 1. Test the motor rear power window in each direction by connecting battery power and ground at the rear power window switch connector (A) according to the table. When the motor stops running, disconnect battery power immediately.If the motor does not run or fails to run smoothly, remove the rear door regulator , go to step 2.
    GHH78880GHH78881Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH78880GHH78881Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

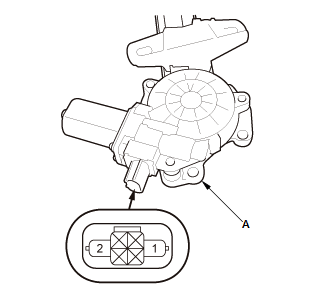

    		 2. Test the rear power window motor (A) by connecting power and ground according to the table. When the motor stops running, disconnect battery power immediately.
    3. If the motor does not run or fails to run smoothly, the rear power window motor is faulty; replace the rear door regulator .If the motor runs smoothly, replace the wire harness.
  3. Rear Door Panel - Install
      1. Install the rear door panel .
