Power Windows System Description - Components (2013-18)
Driver's Power Window Motor

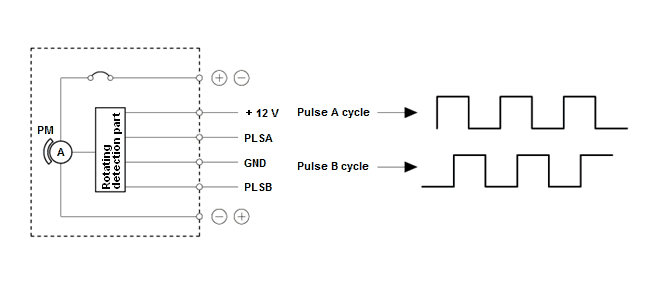

The motor includes the pulse sensors that detect window's position and direction with the motor rotation. The rotating direction (up/down) is detected with the rotating cycles from the 2 pulse sensors and the moving amount (window position) is also detected by considering 4 pulses as one rotation pulse.
