Valve Stem-to-Guide Clearance Inspection (2016-18): Inspection

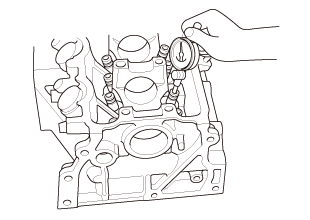

Valve Stem to Guide Clearance - Inspect

Standard (New):	0.020-0.045 mm (0.00079-0.00177 in)
Service Limit:	0.045 mm (0.00177 in)

Standard (New):	0.055-0.080 mm (0.00217-0.00315 in)
Service Limit:	0.080 mm (0.00315 in)

Courtesy of HONDA, U.S.A., INC.

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
