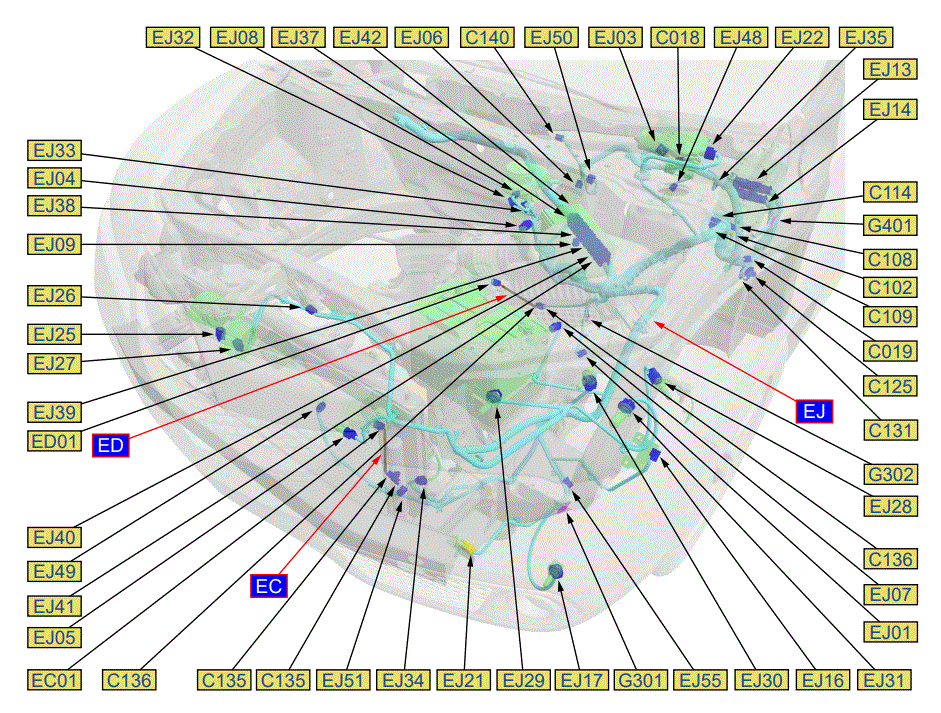

Connector End View: G302
EC: Front ACM Subharness
| Ref. No. | Connector Name | Male/Female | Connector Type | Notes |
| EC01 | Front Engine Mount Actuator 2P Connector | Female | Component Connector | |
| C135 | C135 | In-line Connector |
ED: Rear ACM Subharness
| Ref. No. | Connector Name | Male/Female | Connector Type | Notes |
| ED01 | Rear Engine Mount Actuator 2P Connector | Female | Component Connector | |
| C136 | C136 | In-line Connector |
EJ: Engine Compartment Wire Harness
| Ref. No. | Connector Name | Male/Female | Connector Type | Notes |
| EJ01 | Rear Engine Mount Actuator 2P Connector | Female | Component Connector | |
| EJ03 | Engine Mount Control Unit 16P Connector | Female | Component Connector | |
| EJ04 | MAF Sensor/IAT Sensor 5P Connector | Female | Component Connector | |
| EJ05 | Outside Air Temperature Sensor 2P Connector | Female | Component Connector | |
| EJ06 | APP Sensor 6P Connector | Female | Component Connector | |
| EJ07 | Battery Sensor 2P Connector | Female | Component Connector | |
| EJ08 | Brake Fluid Level Switch 2P Connector | Female | Component Connector | |
| EJ09 | ELD 3P Connector | Female | Component Connector | |
| EJ13 | Under-Dash Fuse/Relay Box Connector C (38P) | Female | Component Connector | |
| EJ14 | Under-Dash Fuse/Relay Box Connector D (32P) | Female | Component Connector | |
| EJ16 | Left Front TPMS Initiator 2P Connector | Female | Component Connector | |
| EJ17 | Left Fog Light 2P Connector | Female | Component Connector | |
| EJ21 | Left Front Impact Sensor 2P Connector | Female | Component Connector | |
| EJ22 | Windshield Wiper Motor 4P Connector | Female | Component Connector | |
| EJ25 | Horn (High) 1P Connector | Female | Component Connector | |
| EJ26 | Security Hood Switch 2P Connector | Female | Component Connector | |
| EJ27 | Horn (Low) 1P Connector | Female | Component Connector | |
| EJ28 | Left Front Side Marker Light 2P Connector | Female | Component Connector | |
| EJ29 | Left Headlight (High) 2P Connector | Female | Component Connector | |
| EJ30 | Left Headlight (Low) 2P Connector | Female | Component Connector | |
| EJ31 | Left Front Parking/Turn Signal Light 3P Connector | Female | Component Connector | |
| EJ32 | Brake Booster Pressure Sensor A 3P Connector | Female | Component Connector | |
| EJ33 | Brake Booster Pressure Sensor B 3P Connector | Female | Component Connector | |
| EJ34 | Radiator Fan Motor 2P Connector | Female | Component Connector | |
| EJ35 | Parking Brake Switch 1P Connector | Female | Component Connector | |
| EJ37 | Relay Holder A | Component Connector | ||
| EJ38 | Relay Holder B | Component Connector | ||
| EJ39 | Relay Holder C | Component Connector | ||
| EJ40 | Relay Holder D | Component Connector | ||
| EJ41 | Relay Holder E | Component Connector | ||
| EJ42 | Under-Hood Fuse/Relay Box | Component Connector | ||
| EJ48 | Brake Pedal Position Switch 4P Connector | Female | Component Connector | |
| EJ49 | A/C Condenser Fan Motor 2P Connector | Female | Component Connector | |
| EJ50 | TPMS Control Unit 20P Connector | Female | Component Connector | |
| EJ51 | ECT Sensor 2 2P Connector | Female | Component Connector | |
| EJ55 | Option Connector (for Fog Light) | YOP Connector (Optional Connector) | ||
| C102 | C102 | In-line Connector | ||
| C108 | C108 | In-line Connector | ||
| C109 | C109 | In-line Connector | ||
| C114 | C114 | In-line Connector | ||
| C125 | C125 | In-line Connector | ||
| C131 | C131 | In-line Connector | ||
| C135 | C135 | In-line Connector | ||
| C136 | C136 | In-line Connector | ||
| C140 | C140 | In-line Connector | ||
| C018 | C018 | Junction Connector | ||
| C019 | C019 | Junction Connector | ||
| G301 | G301 | Ground | ||
| G302 | G302 | Ground | ||
| G401 | G401 | Ground |
