Navigation System Diagnostic Mode (2013-15): Version
Version

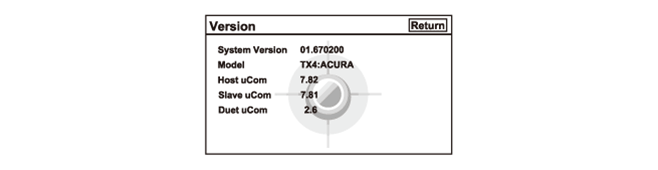

This screen displays the current version information for the navigation system software. In addition, this screen allows the loading of updated software if directed by the factory, or instructed by a Service Bulletin. Software may be loaded from a DVD.
- System Version: Displays the audio/navigation software version.
- Model: Displays the vehicle's model name. For this model, the field should begin with TX4.
- Host uCom, Slave uCom, and Duet uCom are all for factory use.
