Home >> Acura >> 2014 >> ILX Base, 2.4L Eng >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System / Engine Mechanical - Service, Testing And Troubleshooting (Except Hybrid) >> System Description >> PGM-FI - Components (KA, KC models R20A5) (2013 2014)

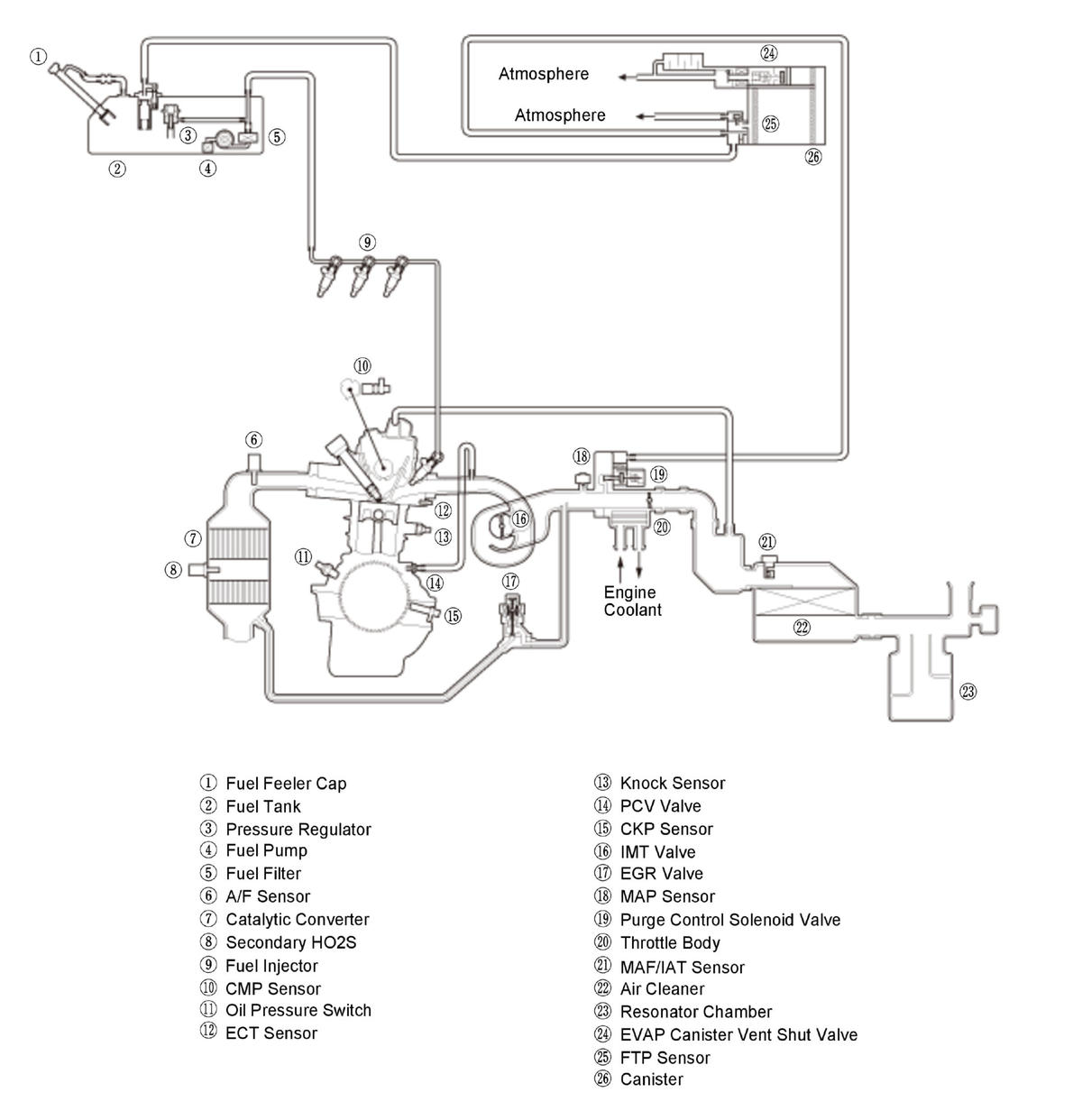

PGM-FI - Components (KA, KC models R20A5) (2013 2014)

GHH468800

Courtesy of HONDA, U.S.A., INC.
