A/T Shift Panel Replacement

Remove the shift lever knob (see SHIFT LEVER KNOB REPLACEMENT ).
Apply protective tape (A) to the center console panel (B) along the side edge of the A/T shift panel (C). Pry up on the edge of the A/T shift panel with a flat-tipped screwdriver wrapped with protective tape to release the hooks (D). Then remove the A/T shift panel.

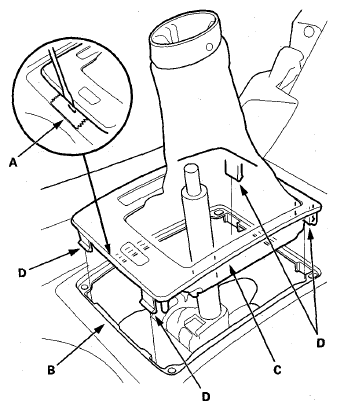

Fig 1: Locating Protective Tape, Center Console Panel And Side Edge Of A/T Shift Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Release the lock tab (A) using a screwdriver, and remove the A/T gear position indicator (B).

Fig 2: Locating Lock Tab And A/T Gear Position Indicator
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Release the lock tabs (A) on the shift lever boot using a screwdriver.

Fig 3: Locating Lock Tabs On Shift Lever Boot
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Replace the A/T shift panel (A).

Fig 4: Locating A/T Shift Panel And Shift Lever Boot
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the shift lever boot (B) on the A/T shift panel.
Route the harnesses on the A/T shift panel (A), and install the A/T gear position indicator (B) in the A/T shift panel.

Fig 5: Locating A/T Shift Panel And A/T Gear Position Indicator
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the A/T shift panel (A) on the center console panel (B).

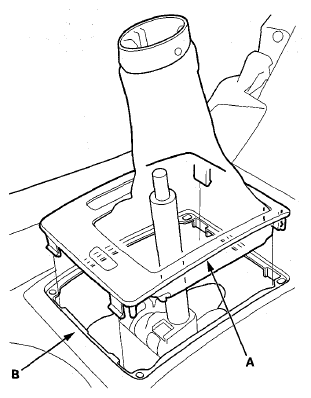

Fig 6: Locating A/T Shift Panel And Center Console Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the shift lever knob (see SHIFT LEVER KNOB REPLACEMENT ).
