DTC P2827: Open in Line Pressure Solenoid Valve A Circuit: Notes

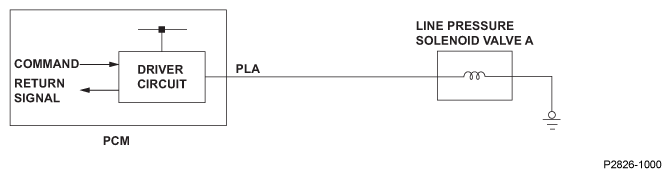

Fig 1: Line Pressure Solenoid Valve A - Circuit Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Line pressure mode combination table

LINE PRESSURE MODE COMBINATION CHART

	Normal line pressure mode	Low line pressure mode
Line pressure solenoid valve A	OFF	ON
Line pressure switch	OFF	ON
Line pressure condition	Normal	Low
