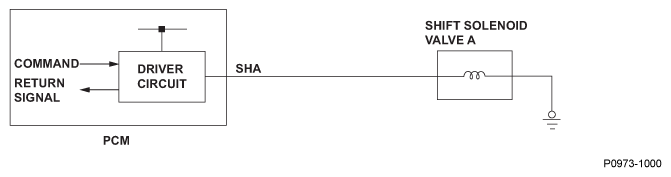

DTC P0974: Open in Shift Solenoid Valve A Circuit: Notes

Hydraulic pressure supply to the clutch by shift solenoid valve output (D position)

	In gear	1st	1st - 2nd	2nd	2nd - 3rd	3rd	3rd - 4th	4th	4th - 5th	5th	5th - 6th	6th
Shift solenoid valve A	ON	ON	ON	ON	ON	OFF	OFF	OFF	OFF	OFF	OFF	OFF
Shift solenoid valve B	OFF	ON	ON	ON	ON	ON	ON	OFF/(ON)	OFF	OFF/(ON)	OFF	OFF
1st clutch	CPC D	LINE	LINE	LINE	LINE	LINE	LINE	LINE	LINE	LINE	LINE	LINE
2nd clutch	-	CPC A	CPC A	CPC A	CPC A	-	-	-	-	-	-	-
3rd clutch	-	CPC B	CPC B	CPC B	CPC B	CPC B	CPC B	(CPC B)	-	(CPC B)	-	-
4th clutch	-	CPC C	CPC C	CPC C	CPC C	CPC C	CPC C	CPC C	CPC C	CPC C	CPC C	CPC C
5th clutch	-	-	-	-	-	CPC A	CPC A	CPC A	CPC A	CPC A	CPC A	CPC A
6th clutch	-	-	-	-	-	-	-	CPC B	CPC B	CPC B	CPC B	CPC B
CPCA: A/T clutch pressure control solenoid valve A pressure CPCB: A/T clutch pressure control solenoid valve B pressure CPCC: A/T clutch pressure control solenoid valve C pressure CPCD: A/T clutch pressure control solenoid valve D pressure LINE: Line pressure
