Side Engine Mount Removal and Installation: Installation

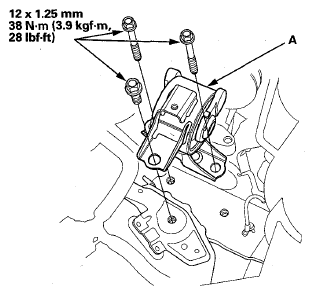

- Install the side engine mount (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.

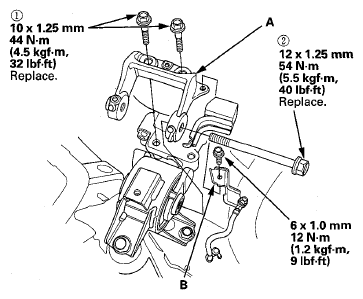

- Loosely install the upper half of the side engine mount bracket (A) using new bolts.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the ground cable bracket (B).
- Remove the jack and the wood block.
- Tighten the mounting bolts in the numbered sequence shown in illustration.
- Install the PCM bracket and the harness bracket, then install the A/C receiver line clamp and the connector to the PCM bracket (see step 42
).
- Install the PCM, then connect the PCM connectors and the engine wire harness connector and install the harness clamps (see step 43
).
- Install the PCM cover, then install the bracket (see step 44
).
- Install the passenger's side front fender trim (see
FRONT FENDER TRIM REPLACEMENT
).
