HANDSFREELINK System
>>
Circuit Diagram
>>
With Navigation
With Navigation

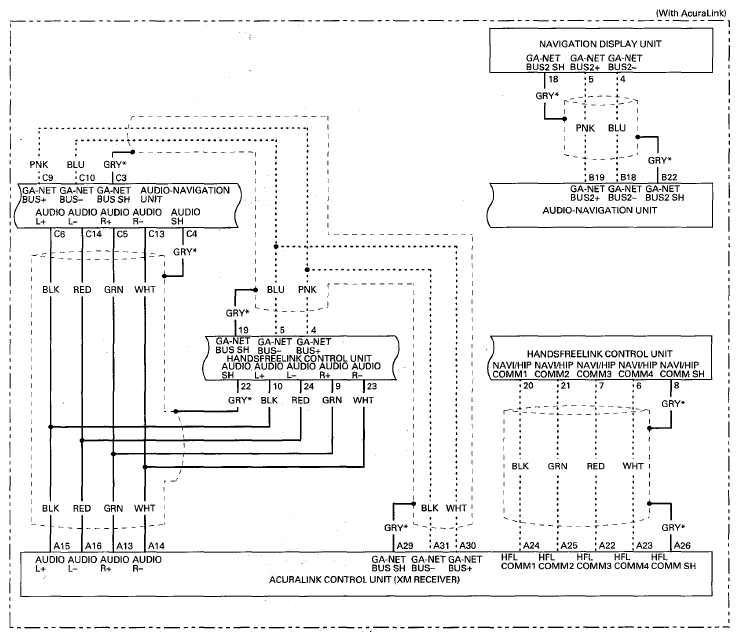

Fig 1: HandsFreeLink Control Unit Circuit Diagram - With Navigation (1 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

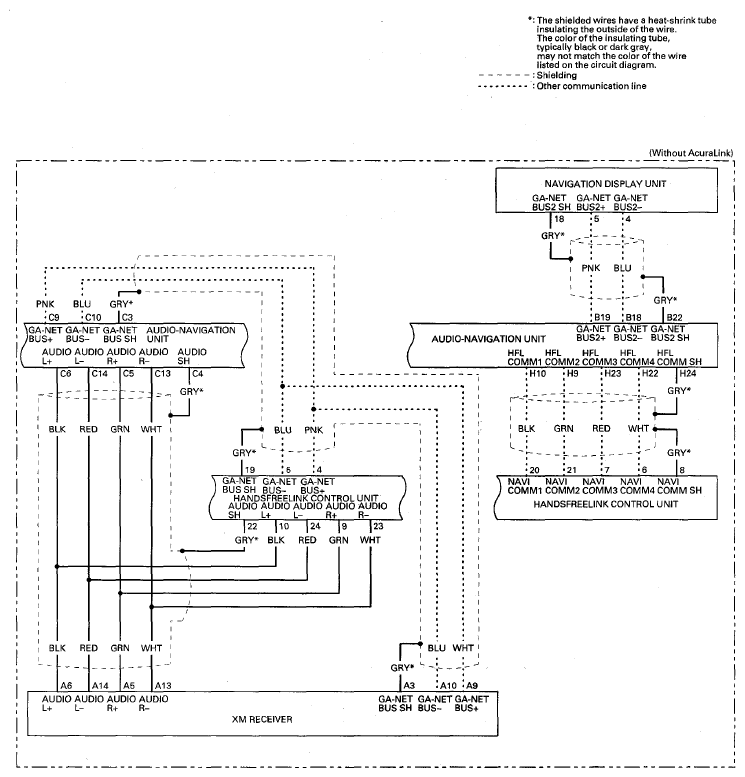

Fig 2: HandsFreeLink Control Unit Circuit Diagram - With Navigation (2 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

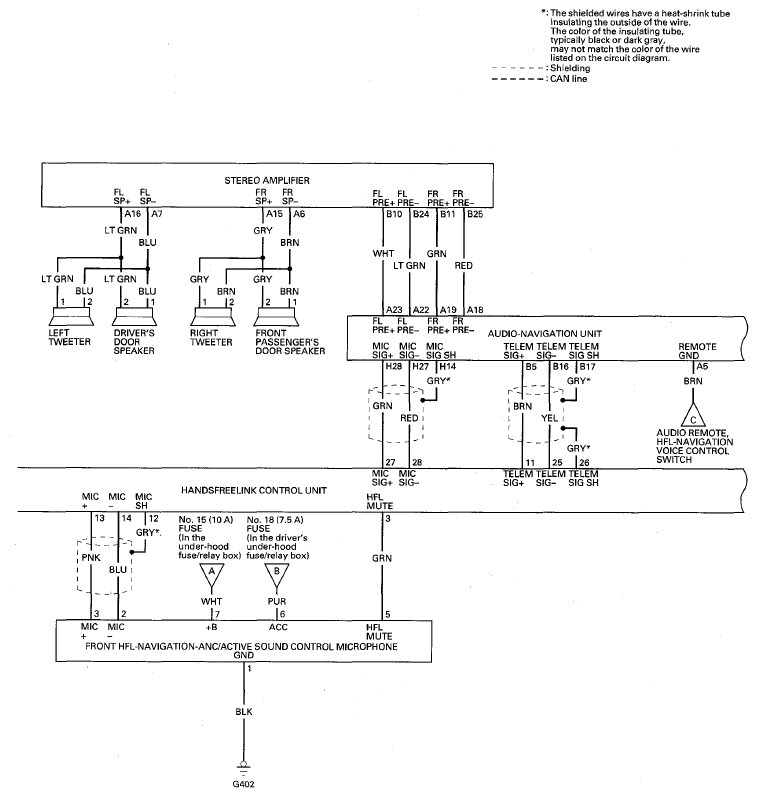

Fig 1: HandsFreeLink Control Unit Circuit Diagram - With Navigation (3 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

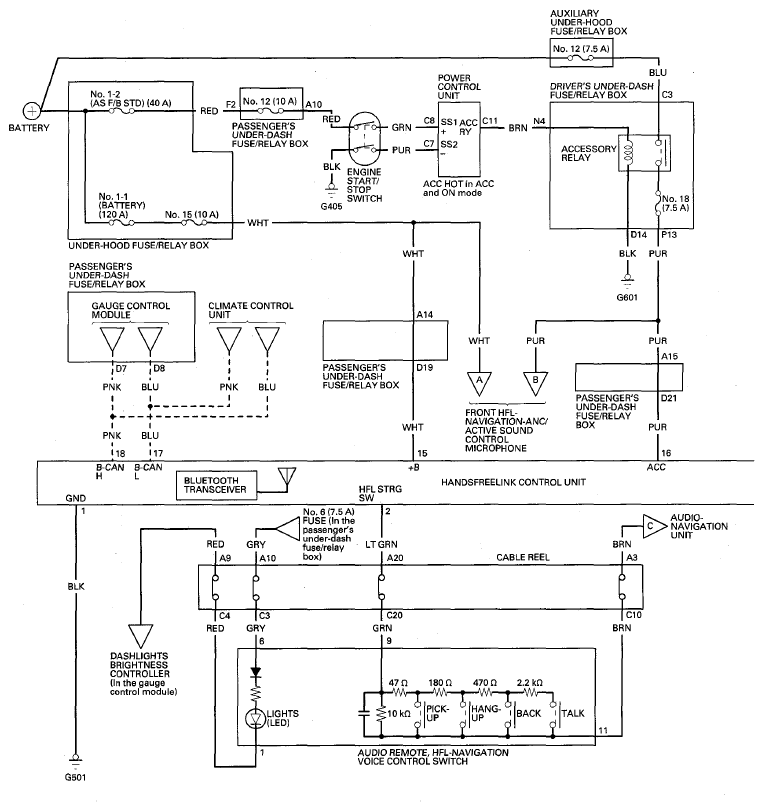

Fig 2: HandsFreeLink Control Unit Circuit Diagram - With Navigation (4 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
