Front Bank (Bank 2): M/T

  1. Raise the vehicle on a lift.
  2. Disconnect the front secondary HO2S 4P connector (A), and remove the harness clamp (B).

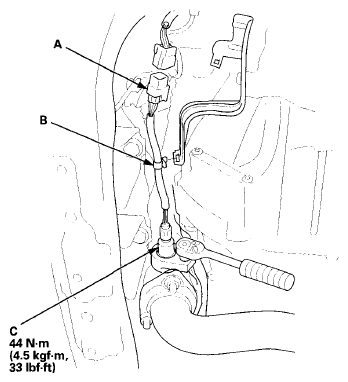

    Fig 1: Front Secondary HO2S 4P Connector And Harness Clamp With Torque Specifications
    G08069582Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove front secondary HO2S (C).
  4. Install the parts in the reverse order of removal.
