Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Fuel And Emissions Systems
>>
System Description
>>
Vacuum Hose Routing
Vacuum Hose Routing

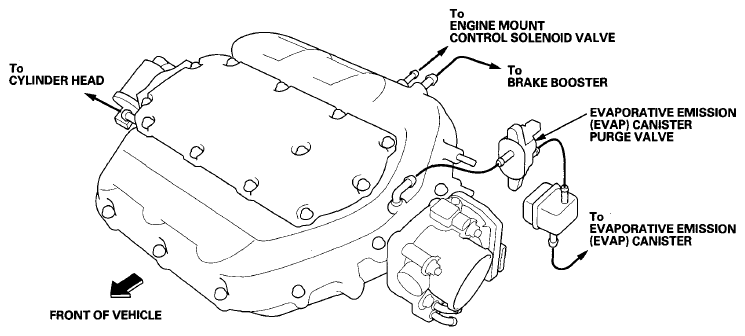

Fig 1: Identifying Vacuum Hose Routing And Related Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
