Intake Manifold Tuning (IMT) Valve

Engine power is adjusted by opening and closing the intake manifold tuning (IMT) valve. When the valve is closed, there is high torque at low engine speed. When the valve is open, there is high torque at high engine speed.

The IMT actuator contains a sensor that detects the IMT valve position and sends it to the ECM/PCM.

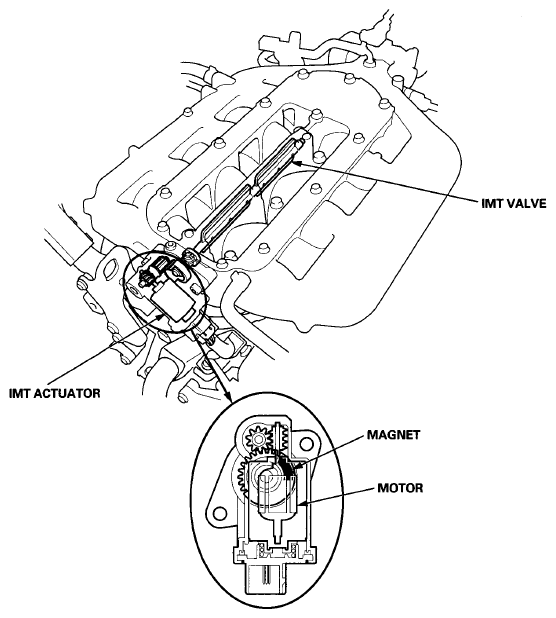

Fig 1: Identifying Intake Air System And Related Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.
