Third Shaft Bearing Replacement

Special Tools Required

• Adjustable Bearing Puller, 25- 40 mm 07736-A01000B
• Bearing Driver Attachment, 52 x 55 mm 07746-0010400
• Driver Handle, 15 x 135L 07749-0010000
• Slide Hammer 07936-371020A
• Bearing Remover Shaft 07JAC-PH80200

1. Remove the third shaft bearing from the torque converter housing using the 25- 40 mm adjustable bearing puller, the bearing remover shaft, and the slide hammer.

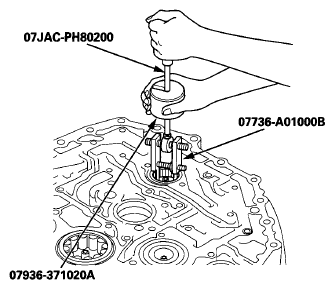

   Fig 1: Removing Third Shaft Bearing Housing Using Bearing Puller, Bearing Remover Shaft And Slide Hammer

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Check the ATF guide plate (A), and replace it if it is damaged.
   Fig 2: Identifying ATF Guide Plate And Bearing In Torque Converter Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Install a new bearing (B) in the torque converter housing.
4. Drive the bearing (A) into the torque converter housing using the 15 x 135L driver handle and the 52 x 55 mm bearing driver attachment; install the bearing to a depth (B) of 0 - 0.07 mm (0 - 0.0012 in) below the torque converter housing surface (C).

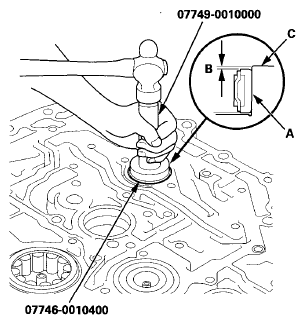

   Fig 3: Drive Bearing Into Torque Converter Housing Using Driver Handle And Bearing Driver Attachment
