Home
>>
Acura
>>
2013
>>
TL Base
>>
Repair and Diagnosis
>>
Steering
>>
Electronic Steering
>>
Electronic Power Steering (EPS) System
>>
Rack End Removal and Installation
>>
Exploded View
Exploded View

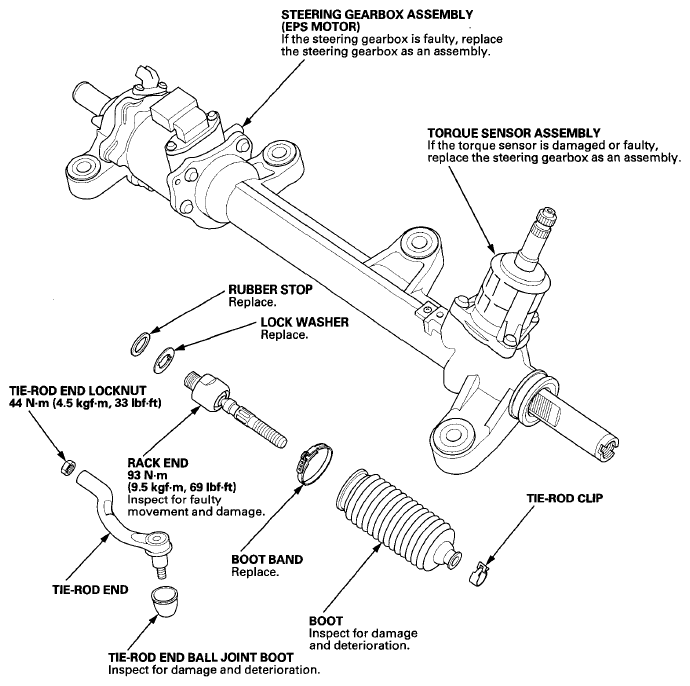

Fig 1: Exploded View Of Rack End With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
