Driver's Seat Position Sensor

The driver's seat position sensor (0) is under the driver's seat on the left side. When the driver's seat is moved to the most forward position, the deployment of the driver's airbag is moderated to decrease its force of impact during a front-end collision.

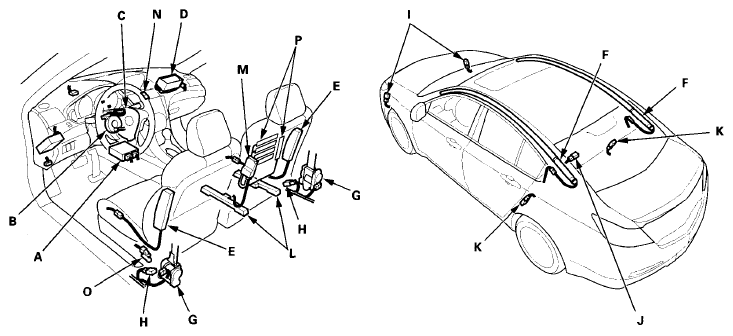

Fig 1: Identifying SRS Components
G08068160Courtesy of AMERICAN HONDA MOTOR CO., INC.
