ODS Unit Replacement: Removal

  1. Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ), then wait at least 3 minutes before starting work.
  2. Remove the front passenger's seat (see FRONT SEAT REMOVAL/INSTALLATION ).
  3. Remove the front seat back panel (see FRONT SEAT-BACK COVER REPLACEMENT ).
  4. Turn over the seat-back cover/pad to gain access to the ODS unit (see FRONT SEAT-BACK COVER REPLACEMENT ).
  5. Remove the cover (A), then disconnect the ODS unit 18P connector (B) and the OPDS sensor connectors (C) from the ODS unit (D).

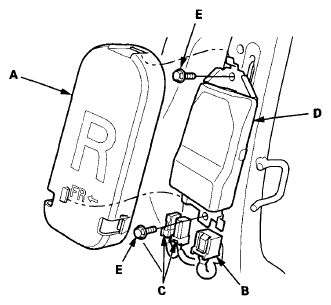

    Fig 1: Identifying Cover, ODS Unit 18P Connector And OPDS Sensor Connectors
    G08068386Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the two bolts (E) and the ODS unit.
