SH-AWD Control Unit Electrical Connections
SH-AWD Control Unit Electrical Connections

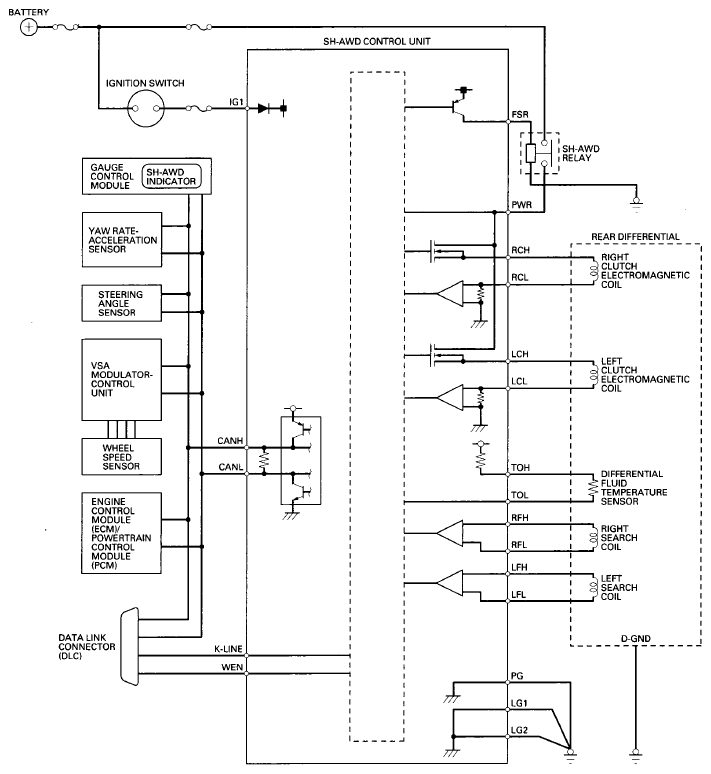

Fig 1: Electric Control System Circuit Diagram (SH-AWD Control Unit)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
