Rear Differential Disassembly/Reassembly

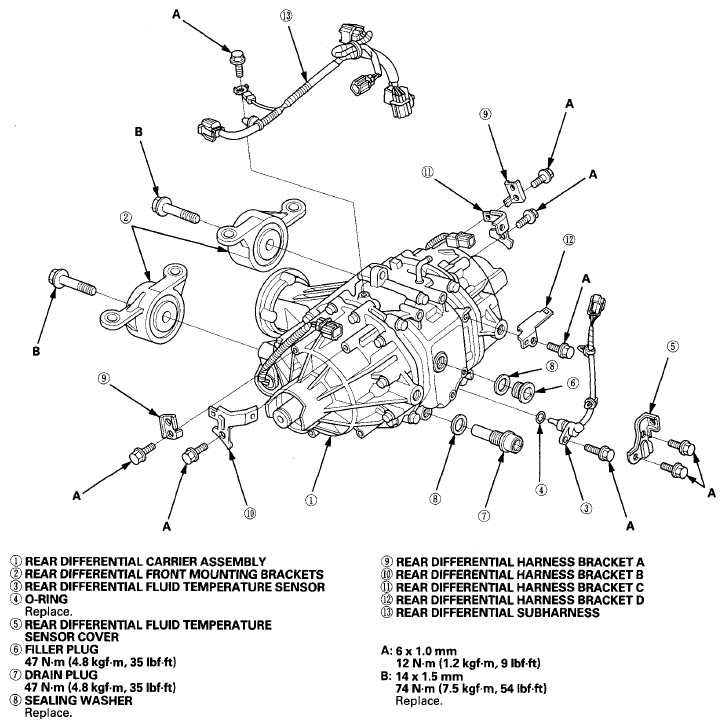

Fig 1: Exploded View Of Rear Differential With Torque Specifications

G08067390

Courtesy of AMERICAN HONDA MOTOR CO., INC.
