Component Location Index

For the driver's power seat, refer to the  DRIVER POSITION MEMORY SYSTEM (DPMS)

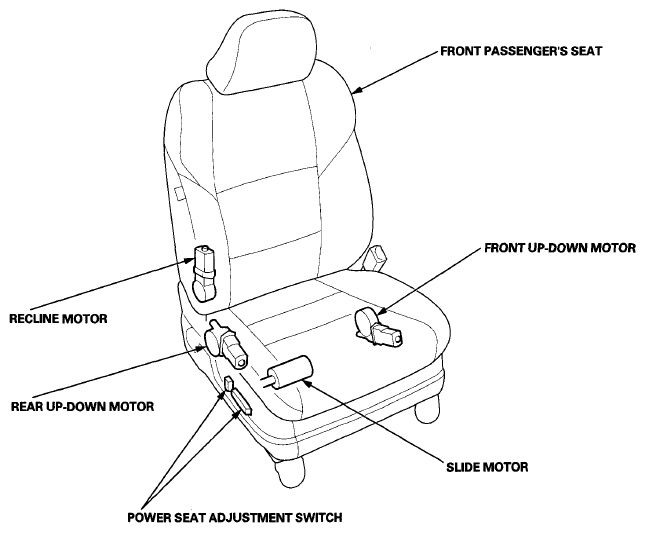

Fig 1: Power Seats Components Location
G08071631Courtesy of AMERICAN HONDA MOTOR CO., INC.
